YOUYEETOO YY3588 Single Board Computer: Unleashing RK3588's Potential for Industrial & Intelligent Projects

• Quick Start: https://wiki.youyeetoo.com/YY3588
• Tips

Introduction

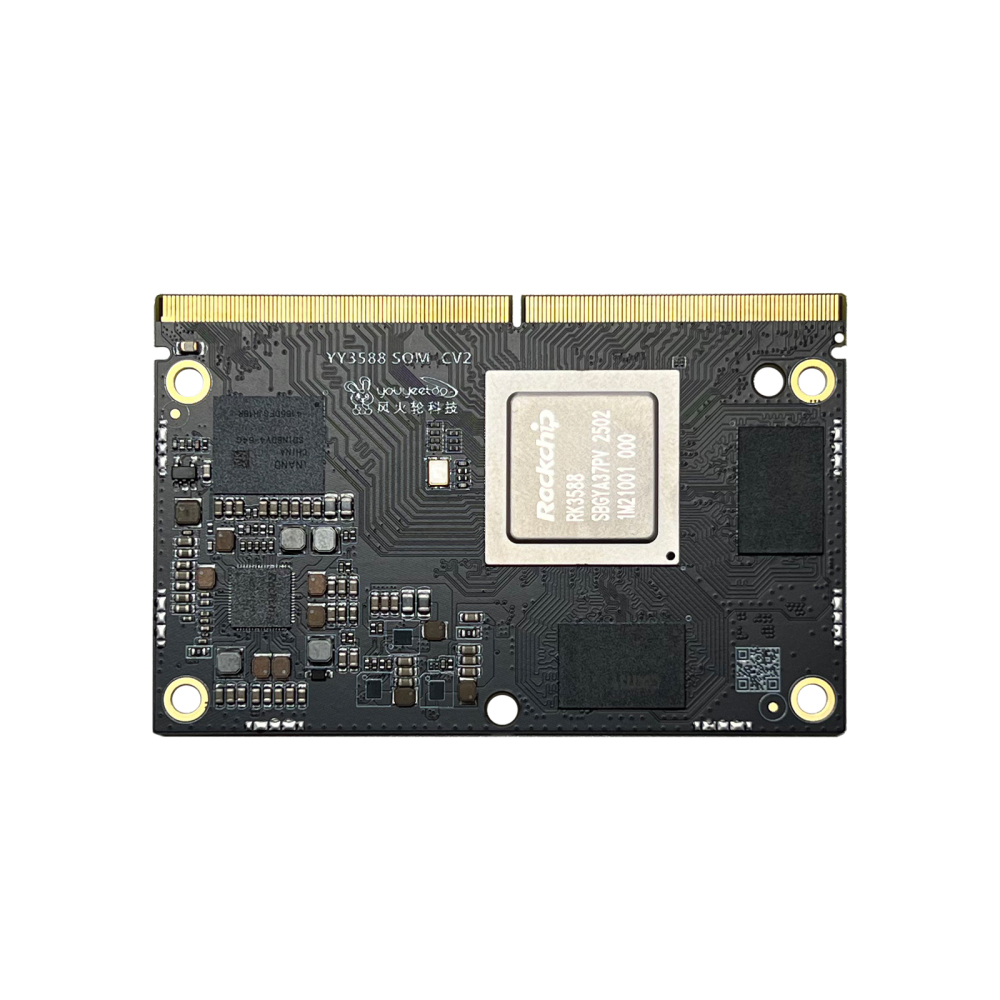

The YOUYEETOO YY3588 Single Board Computer is a high-performance industrial electronic product based on the Rockchip RK3588 chip. The chip is manufactured using an 8nm process and features 8 core  (4×A76 @2.4GHz + 4×A55 @1.8GHz) with a clock speed of up to 2.4GHz. It also incorporates a tri-core NPU with a computing power of 6 TOPS, supporting mixed-precision computations and multiple model transformations.

The single board computer is equipped with LPDDR4/4X memory, offering frequencies of up to 3200Mbps and capacities ranging from 4GB to 32GB. It includes onboard eMMC5.1 flash storage in various capacities of 32G, 64G, 128G, or 256GB. Additionally, it supports SPI Flash, M.2 M-Key interface NVMe 2280 SSDs, SATA3.0 interface, and a MicroSD card slot. In terms of networking, it is equipped with 1x Gigabit Ethernet port and 1x 2.5G Ethernet port. It can be extended via an M.2 slot and defaults to supporting the RTL8852BE Wi-Fi 6 + BT5.2 dual-band Wi-Fi + Bluetooth module. It also supports a MiniPCIE interface + SIM card slot for 4G LTE. The display output interfaces are abundant, featuring 1x HDMI 2.1 interface supporting 8K@60fps or 4K@120fps, 2x MIPI DSI DPHY interfaces with 4 Lane output and up to 4K@60HZ resolution, 1x DP1.4 interface supporting up to 8K@30fps via a Type-C port, and 1x EDP interface. For video input, it has 2x MIPI CSI DPHY interfaces (1x4 lanes or 2x2 lanes), 30Pin-0.5mm, and 1x HDMI-IN interface supporting 4K@60fps and HDCP 2.3. The single board computer adopts a modular architecture with a core board and a base board. The core board measures 82mm×53mm, and the base board has a default size of 120mm×88mm. It offers a variety of interfaces, including audio, buttons, USB, UART, I2C, CAN, RTC, LED lights, power, NFC, infrared IR, fan FAN, and 30-pin expansion pins. It is pre-adapted to multiple mainstream operating systems such as Android 14, Debian 12, Ubuntu 22.04, Buildroot, and OpenHarmony 5.1.

It also provides extensive software resources and Wiki for user development. It is suitable for applications in industrial automation, edge AI, smart infrastructure, IoT gateways, and other fields, such as machine vision systems, robotics control, predictive maintenance, digital signage, interactive terminals, building automation, and multi-protocol edge nodes. It can deliver scalable performance and rapid deployment in space-constrained environments, helping to achieve intelligent and efficient transformation of industrial production. It provides strong technical support for enterprises in the era of Industry 4.0, has broad market prospects, and is a highly competitive and quality choice in the field of industrial electronic products, favored by procurement and engineering personnel worldwide.

Features

• [High-Performance Processor] Equipped with the powerful Rockchip RK3588 chip, featuring 8nm process, 8 A76 cores up to 2.4GHz, and a tri-core NPU delivering 6TOPS computing power, ideal for complex industrial and AI applications.
• [Rich Storage Options] Offers LPDDR4/4X memory with frequencies up to 3200Mbps in capacities of 4GB/8GB/16GB/32GB, and onboard eMMC5.1 flash storage in 32G/64G/128G/256GB, plus support for SPI Flash, M.2 NVMe SSD, SATA3.0, and MicroSD.
• [Versatile Network Connectivity] Comes with 1x Gigabit Ethernet and 1x 2.5G Ethernet ports, supports RTL8852BE Wi-Fi 6 + BT5.2 dual-band Wi-Fi + Bluetooth via M.2 slot, and also supports MiniPCIE + SIM card slot for 4G LTE.
• [Multiple Display Outputs] Features 1x HDMI 2.1 (8K@60fps/4K@120fps), 2x MIPI DSI DPHY (4 Lane, up to 4K@60Hz), 1x DP1.4 (up to 8K@30fps via Type-C), and 1x EDP interface for diverse display needs.

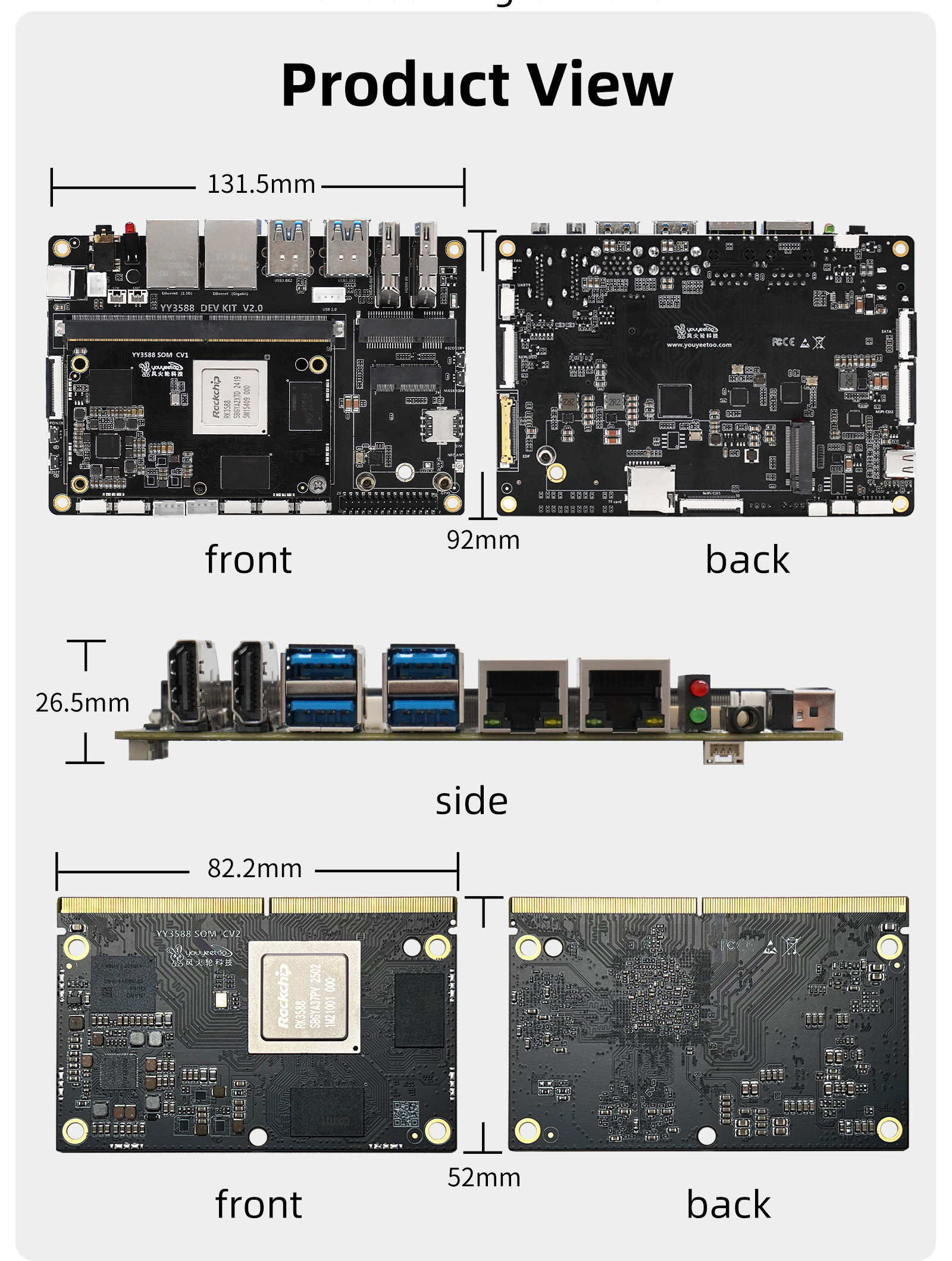

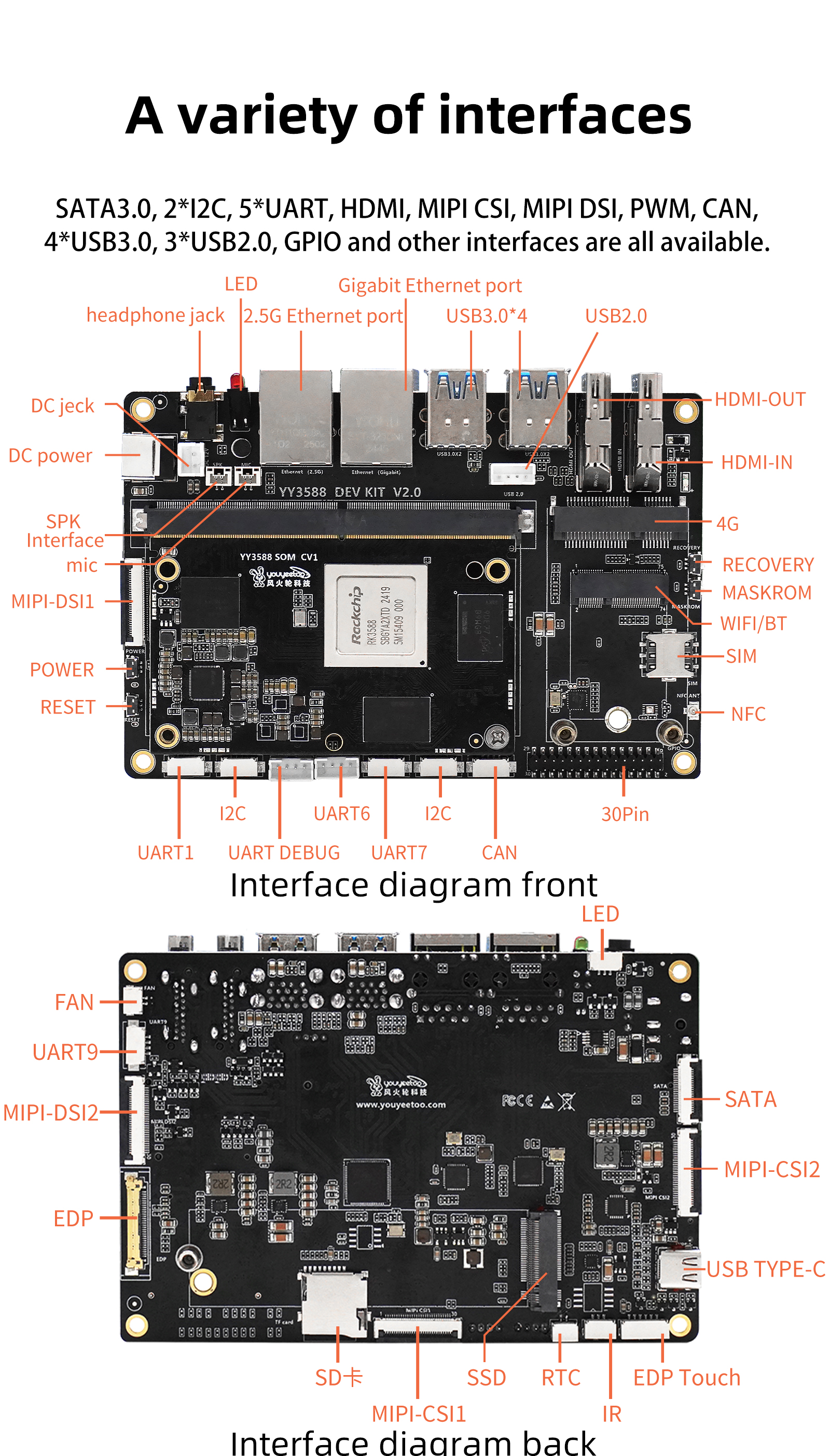

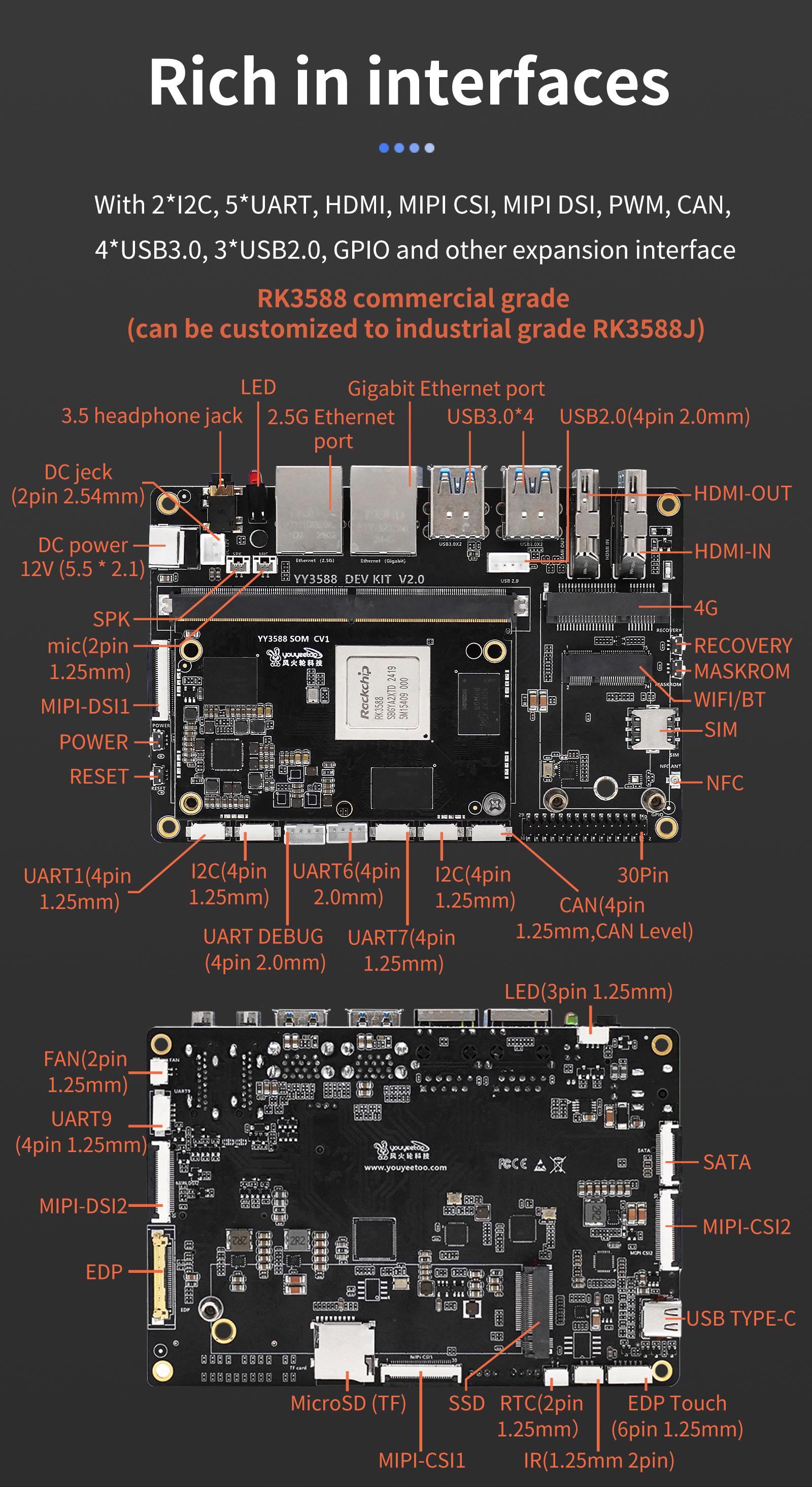

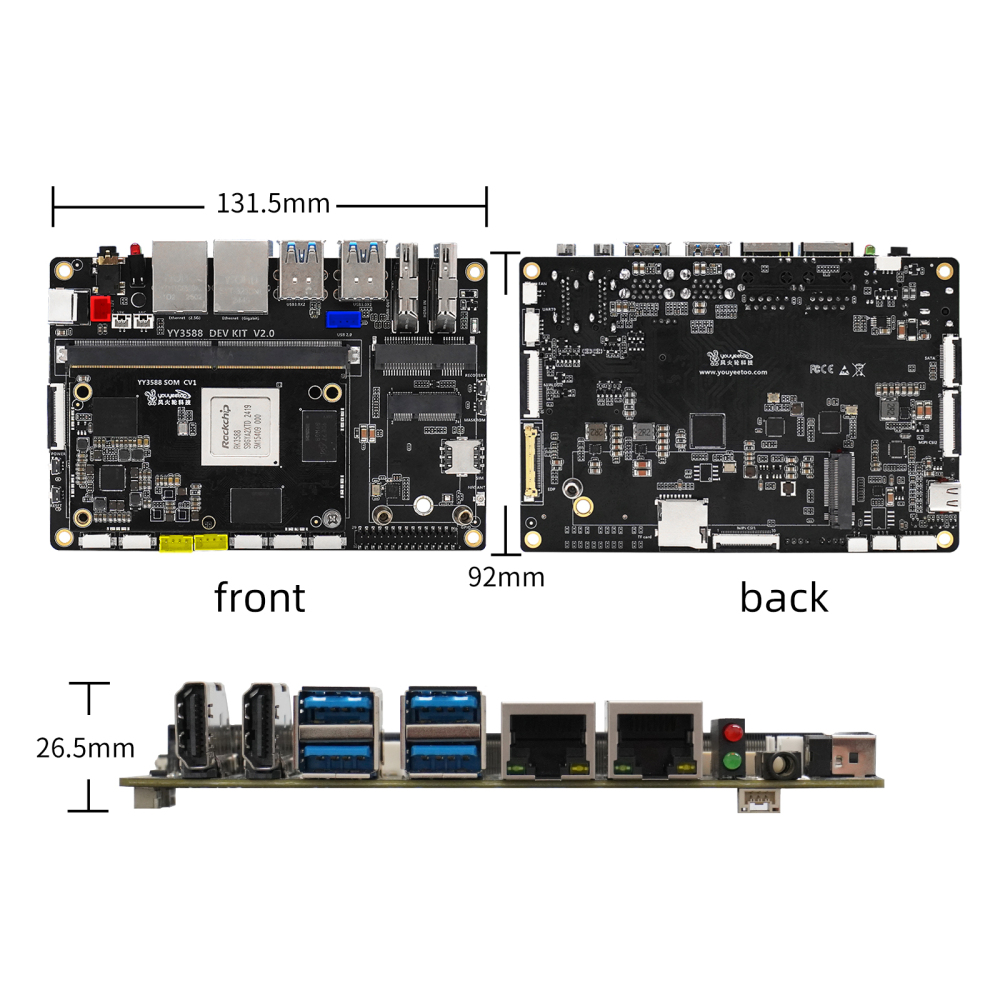

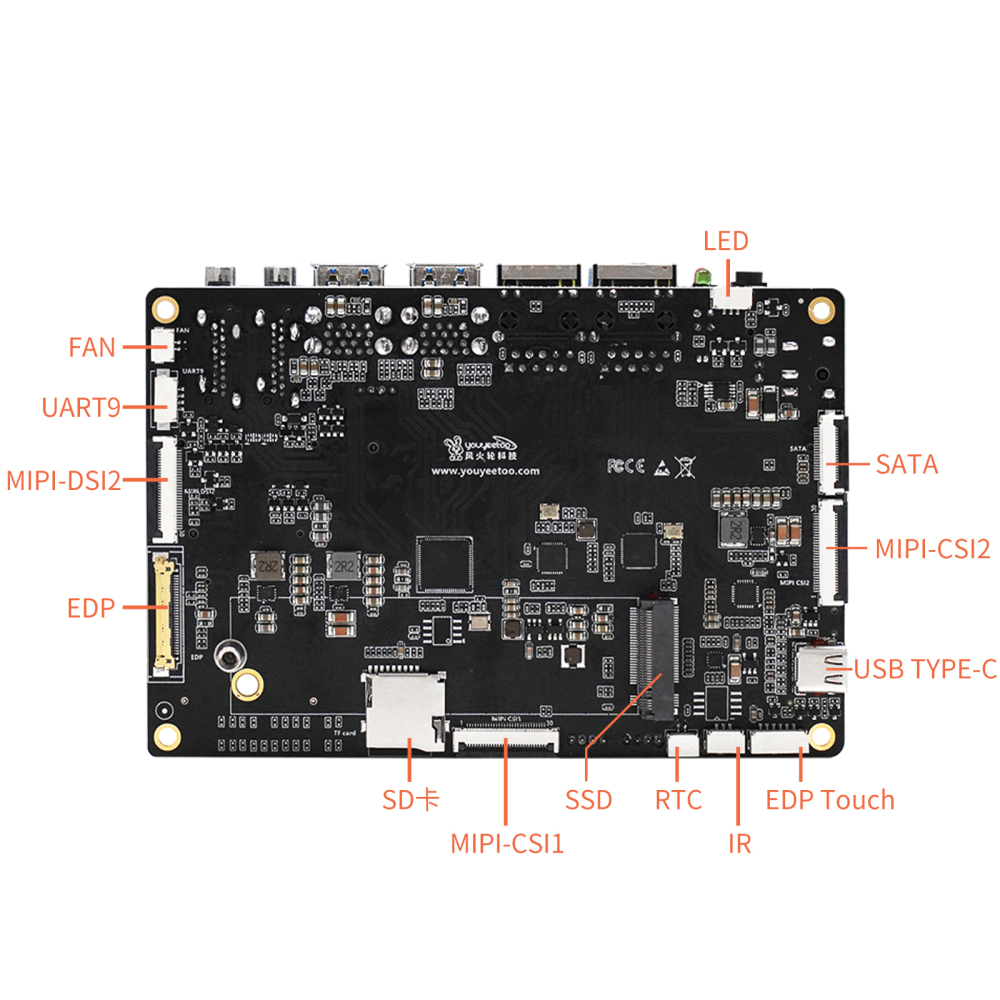

• [Modular Design & Rich Interfaces] Adopts a core board + base board modular design. The core board is 82mm×53mm, and the base board is 120mm×88mm. It offers abundant interfaces like audio, buttons, USB, UART, I2C, CAN, RTC, LED, power, NFC, infrared IR, fan FAN, and 30-pin expansion pins.
• [Multi-OS Support] Pre-adapted to Android 14, Debian 12, Ubuntu 22.04, BuildRoot, OpenHarmony 5.1, etc., with rich software resources and Wiki for easy development.

Shipping List

Reference to the picture.

• 1× YOUYEETOO YY3588 Core Board
• 1× Base Board
• 1× Quick Start Guide
• 1× Type-C Cable
• 1× Power Adapter

Applications

It is suitable for applications in industrial automation, edge AI, smart infrastructure, IoT gateways, and other fields, such as machine vision systems, robotics control, predictive maintenance, digital signage, interactive terminals, building automation, and multi-protocol edge nodes.

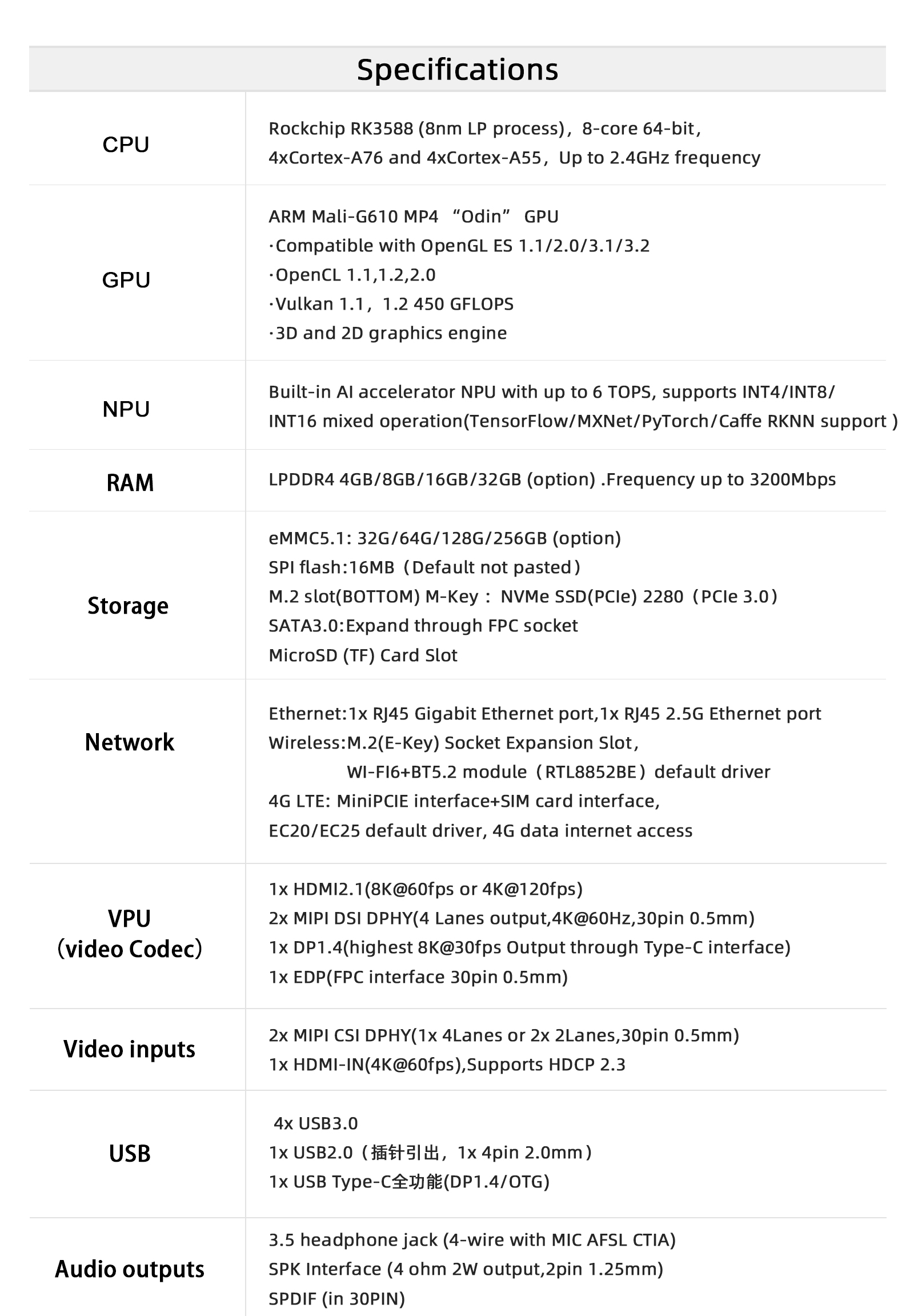

Specification

• Processor:
  • Rockchip RK3588 octa-core ARM Cortex (4×A76 @2.4GHz + 4×A55 @1.8GHz)
  • Integrated 6TOPs NPU for edge AI inference, supporting TensorFlow, PyTorch, and ONNX frameworks.
  • Hardware-accelerated 4K video encoding/decoding (H.265/VP9).
• Memory & Storage:
  • Supports M.2 NVMe SSD (PCIe 3.0 x4) and SATA 3.0 for high-throughput storage.
  • Expandable via microSD card slot (optional, if applicable).
• Mechanical Design:

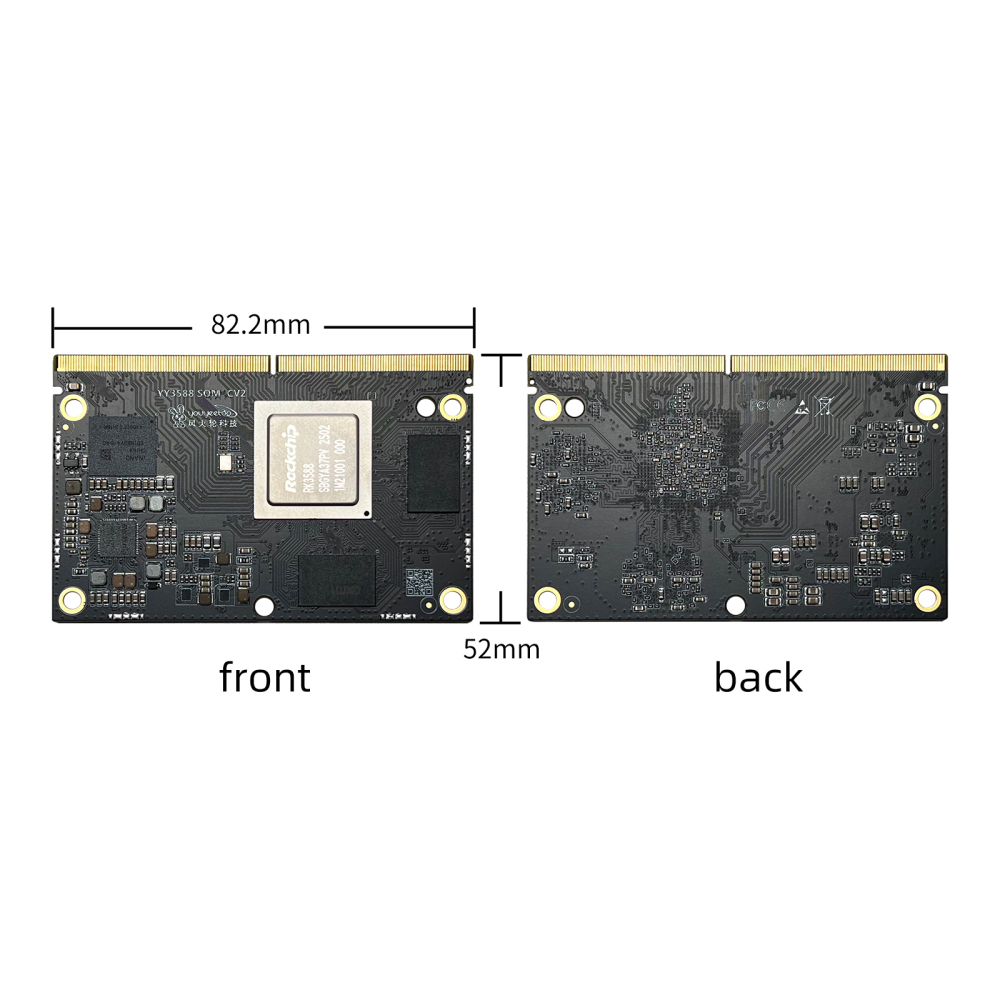

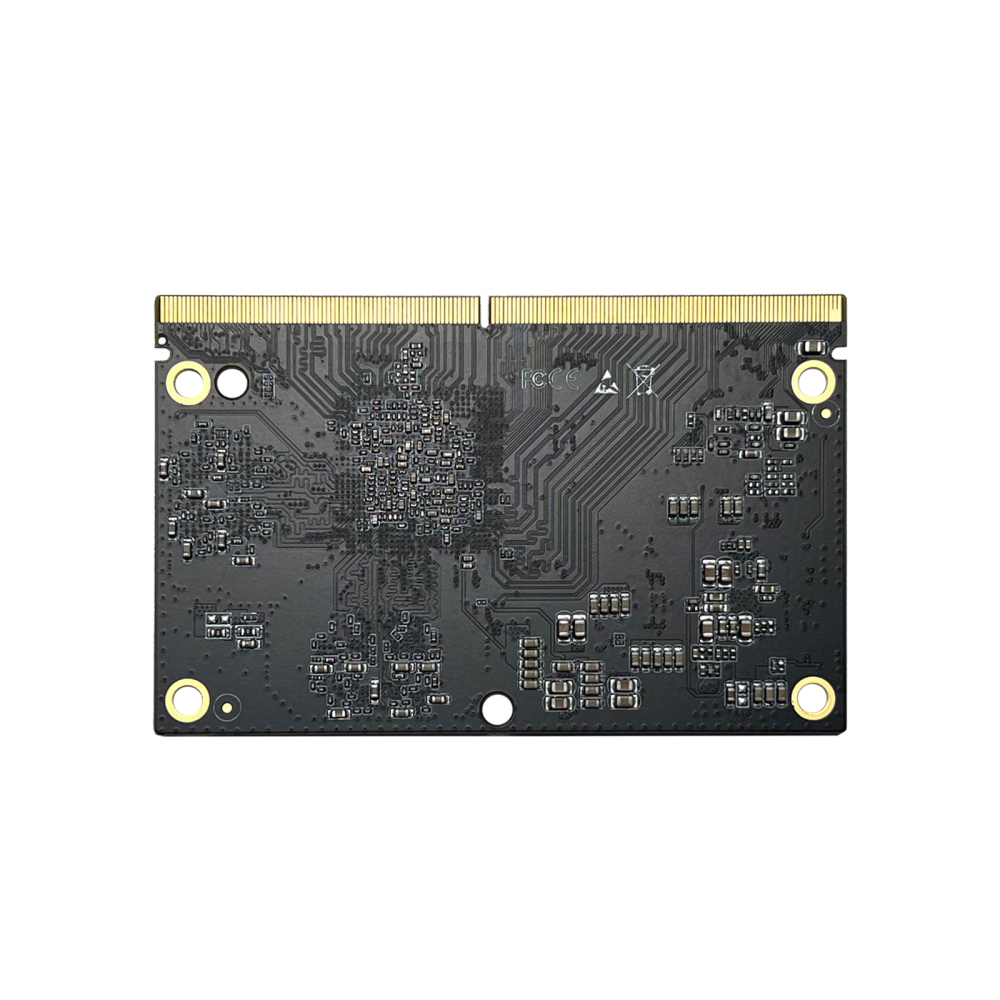

  • Core Module: 82mm × 53mm (BGA-embedded design for rugged applications).
  • Default Carrier Board: 120mm × 88mm (optimized for peripheral integration).

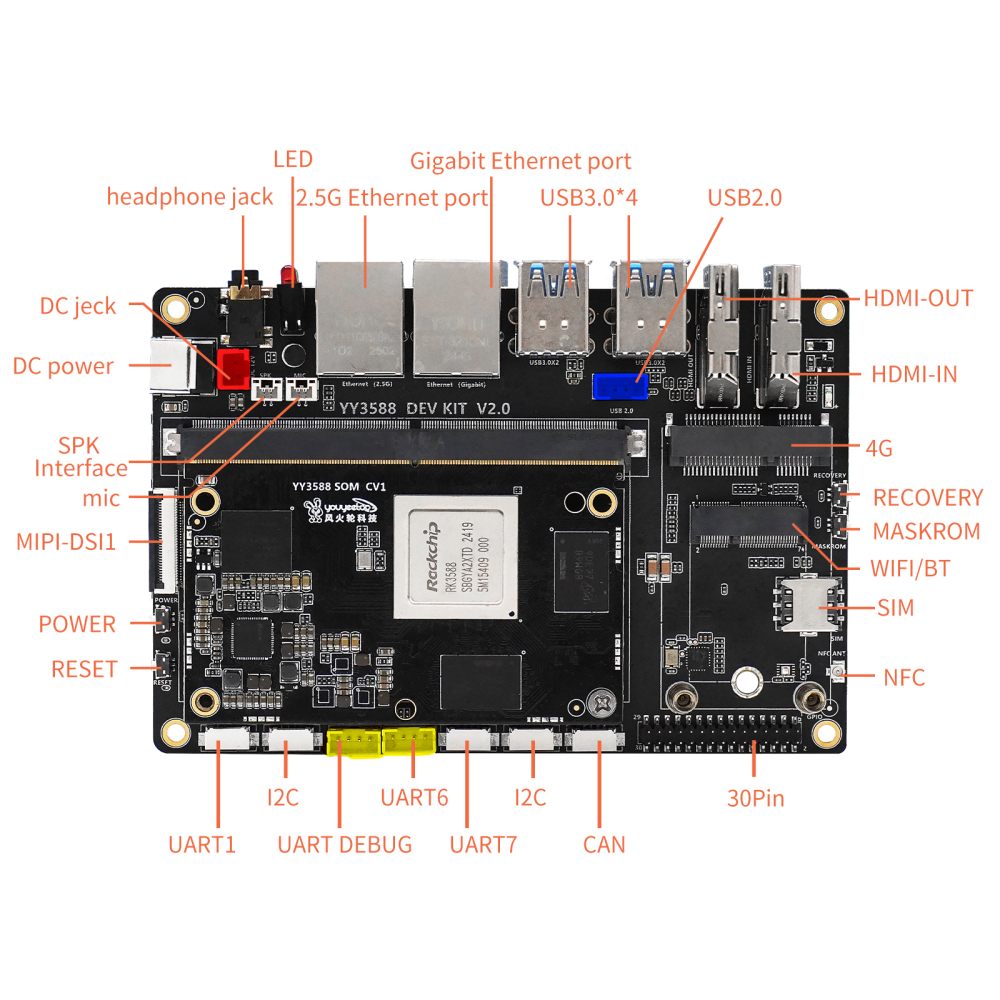

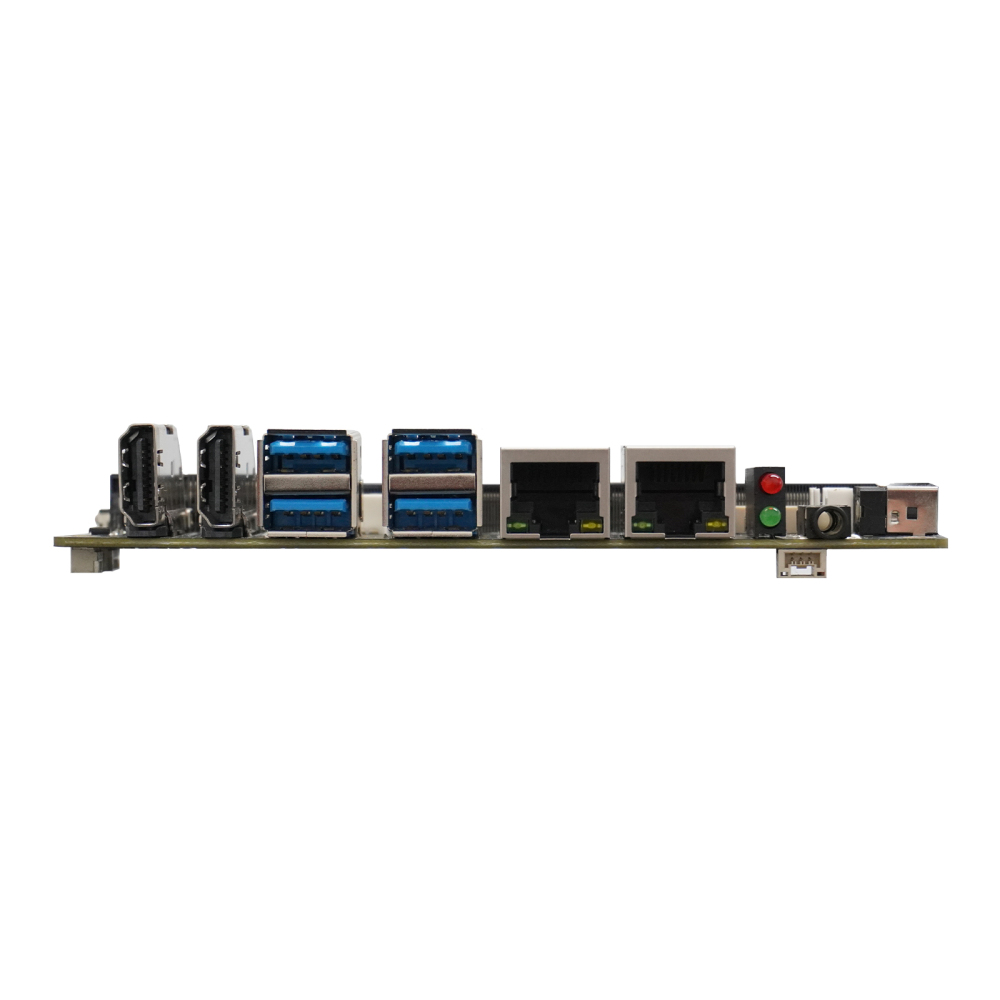

Connectivity & Interfaces

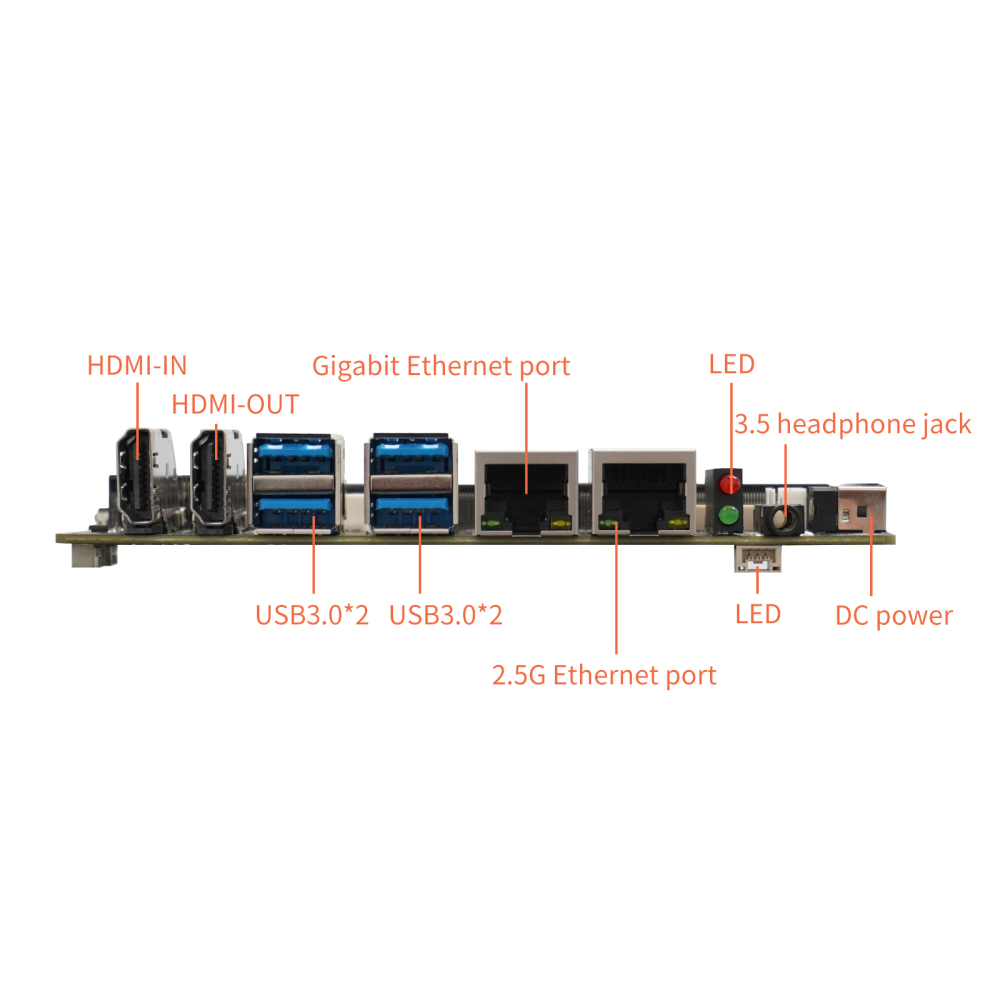

1. Networking:

   • 2.5GbE + Gigabit Ethernet ports for high-bandwidth data transfer.

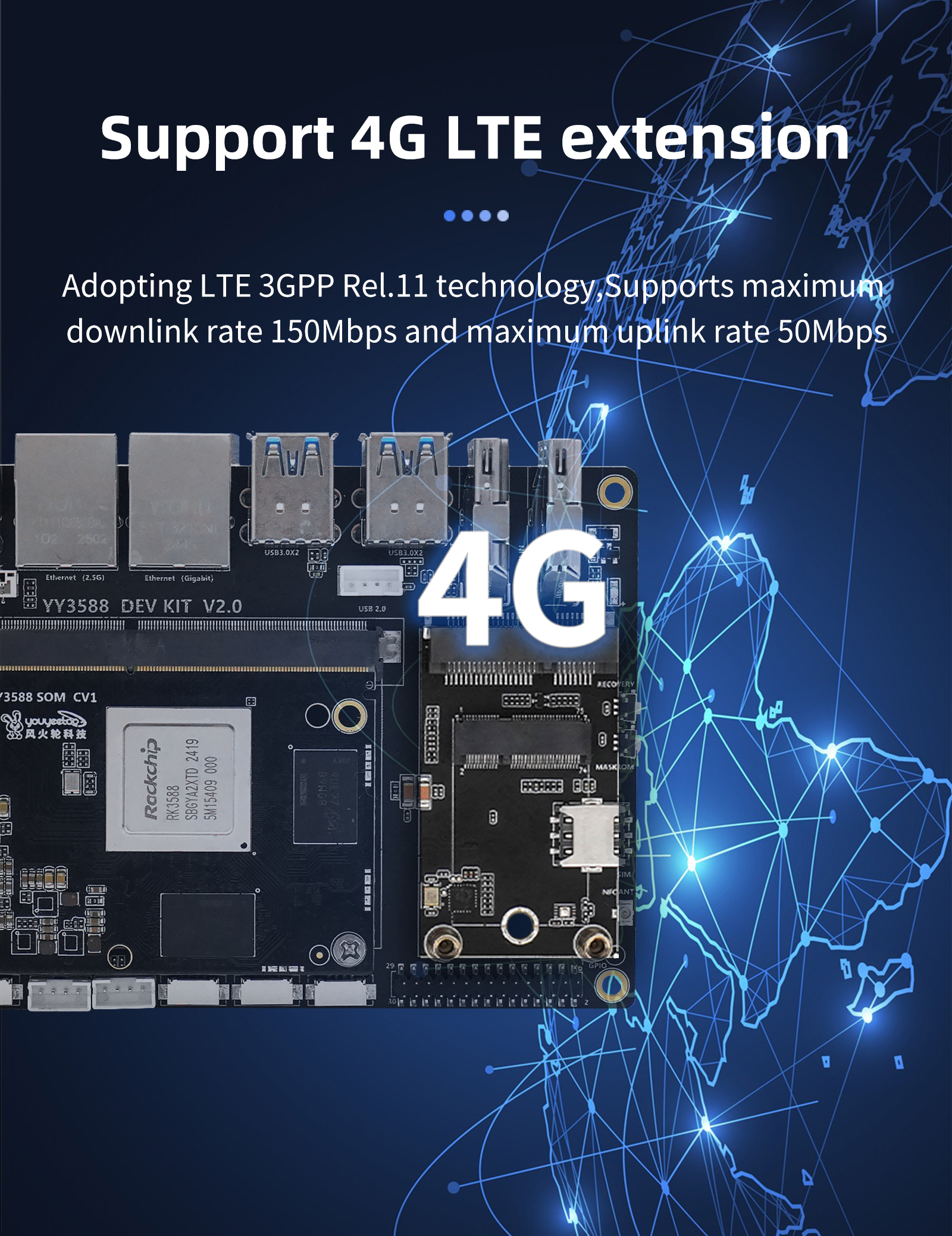

   • 4G LTE module (via Mini PCIe/M.2, carrier-dependent).

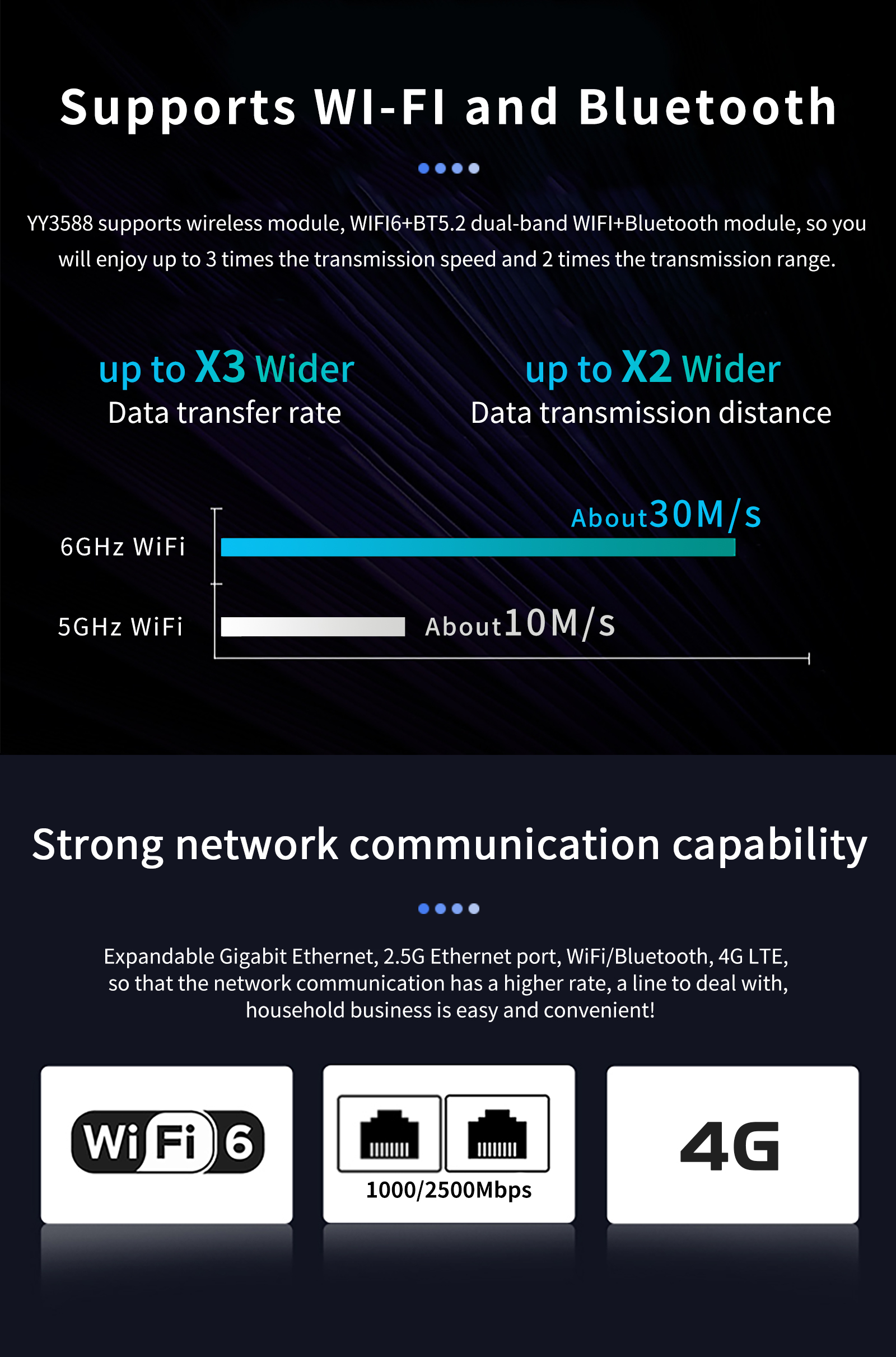

   • M.2 E-key slot for WiFi 6 (802.11ax) and Bluetooth 5.2.

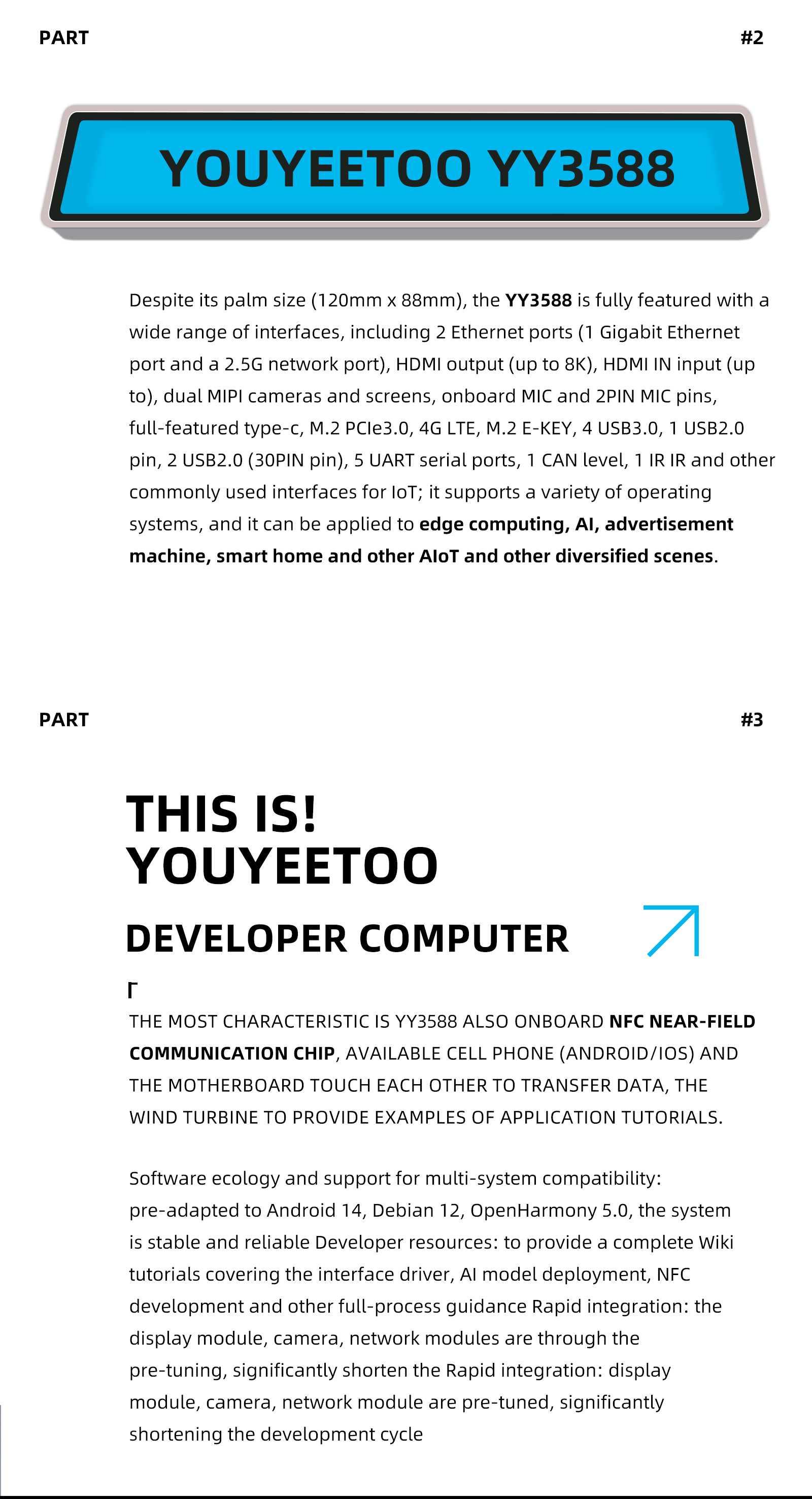

   • Onboard NFC (ISO/IEC 14443 compliant), enabling secure smartphone pairing (industry-exclusive feature).

2. Display & Multimedia:

   • Multi-display support:
     • 2× MIPI DSI (1920×1080 @60Hz per channel).
     • 1× eDP 1.4 (2560×1600 @60Hz).
     • HDMI 2.1 output (4K@60Hz) + HDMI 2.0 input (4K@30Hz).

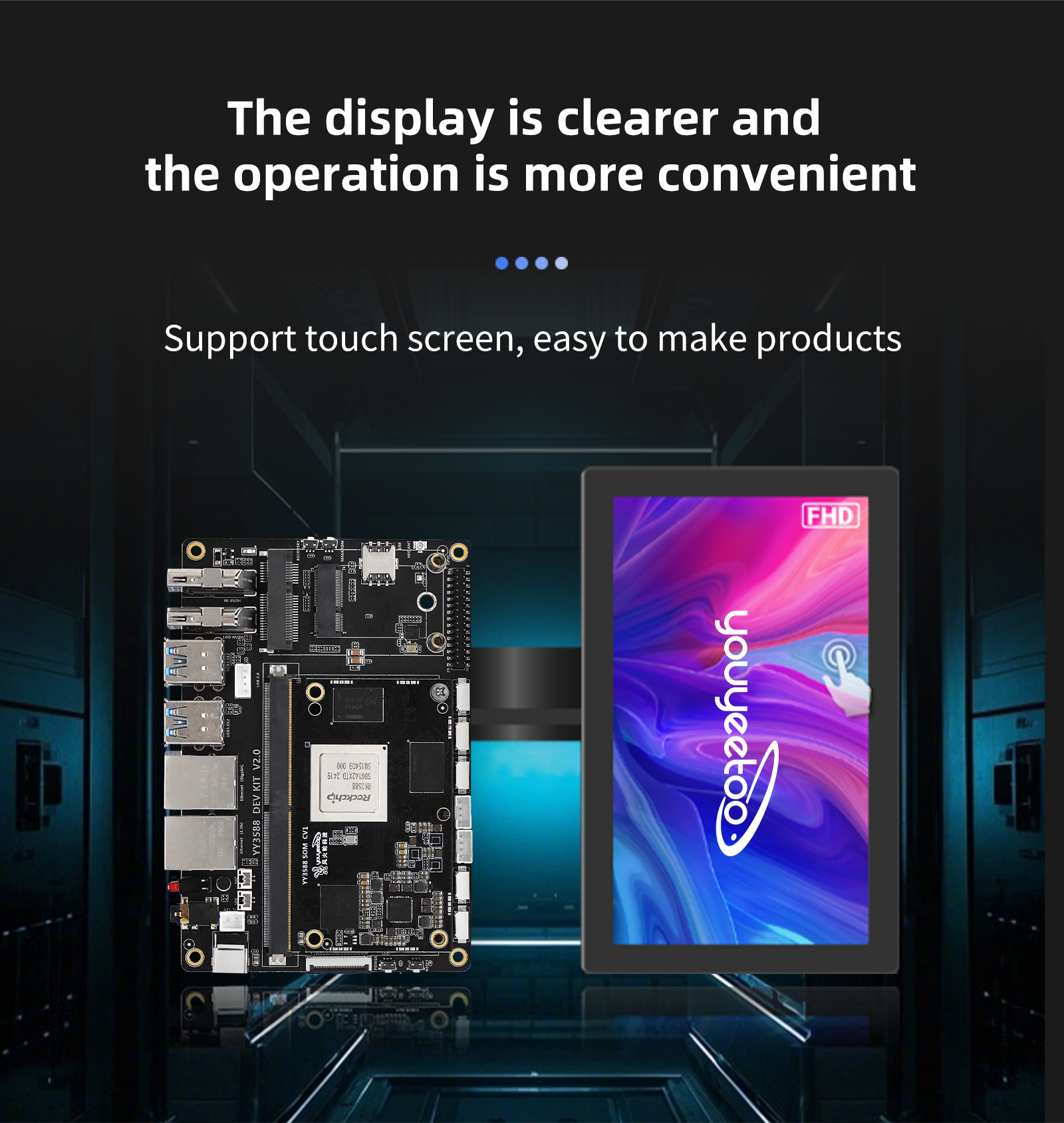

   • Pre-validated touchscreens: 7" MIPI (1024×600) and 11.6" eDP (1920×1080).

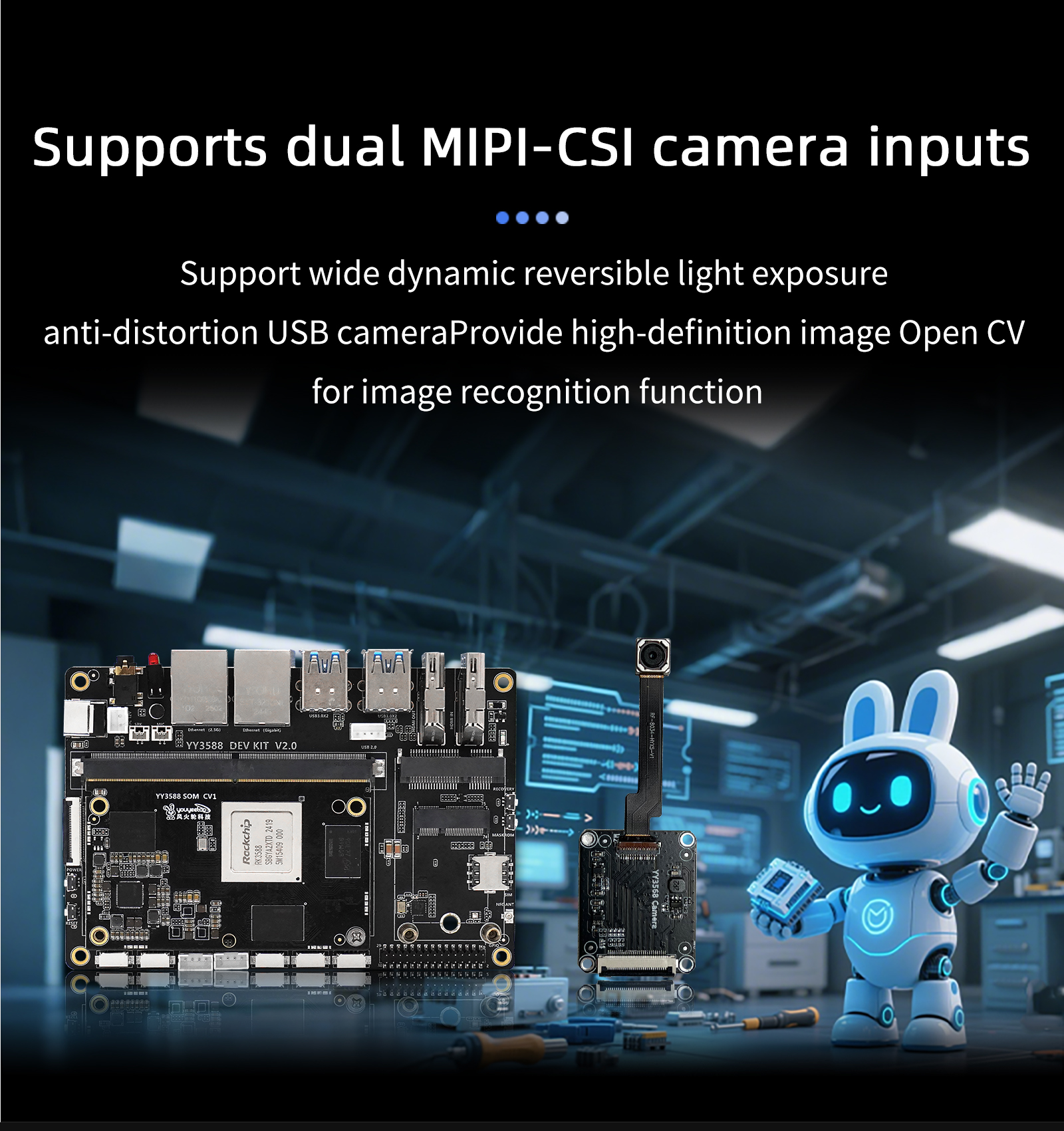

   • Dual MIPI CSI-2 (4-lane) for camera arrays (up to 8MP @30fps).

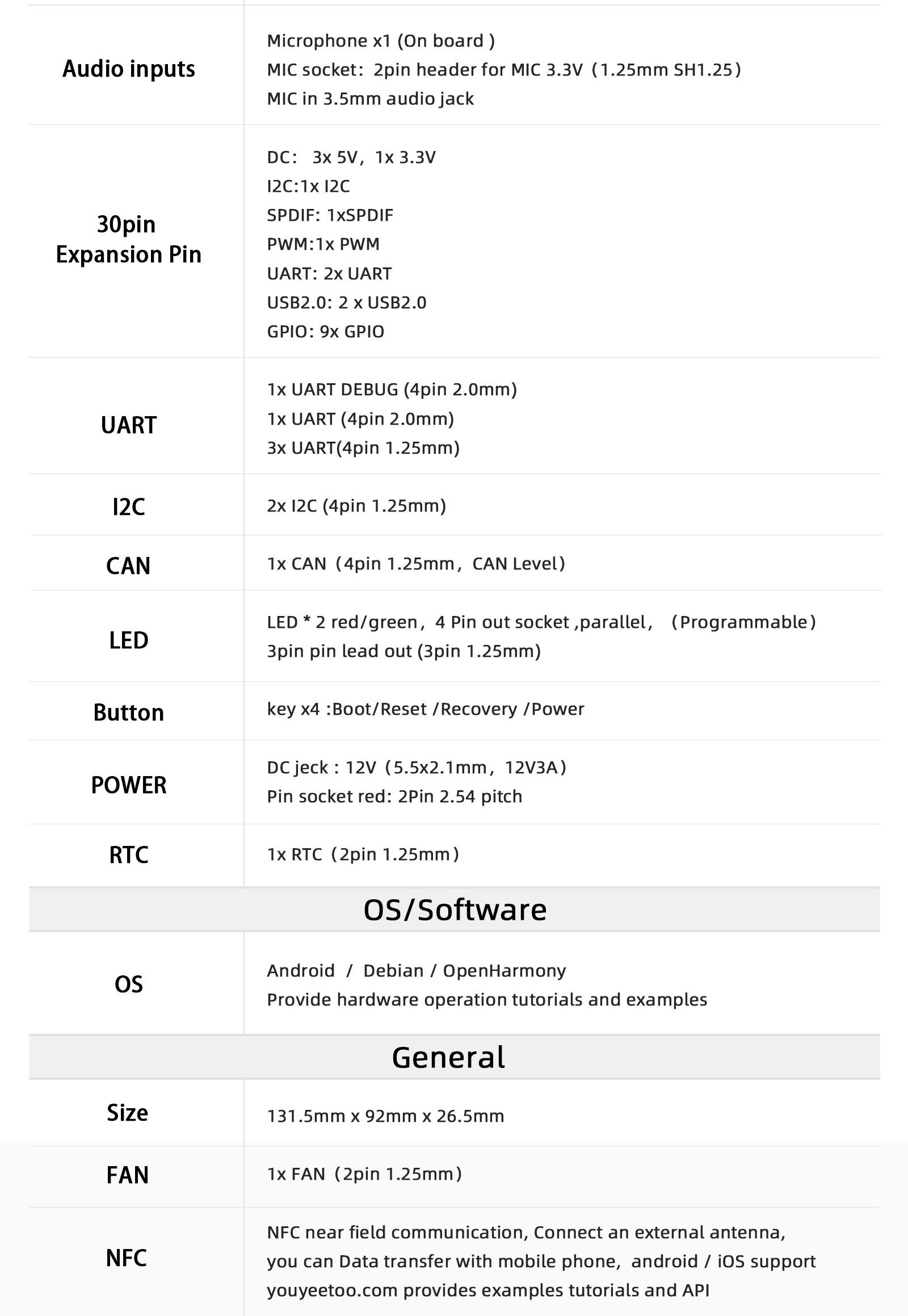

3. Industrial I/O & Expansion:

   • 5× UART (incl. dedicated DEBUG port), CAN 2.0B, I2C, SPI.

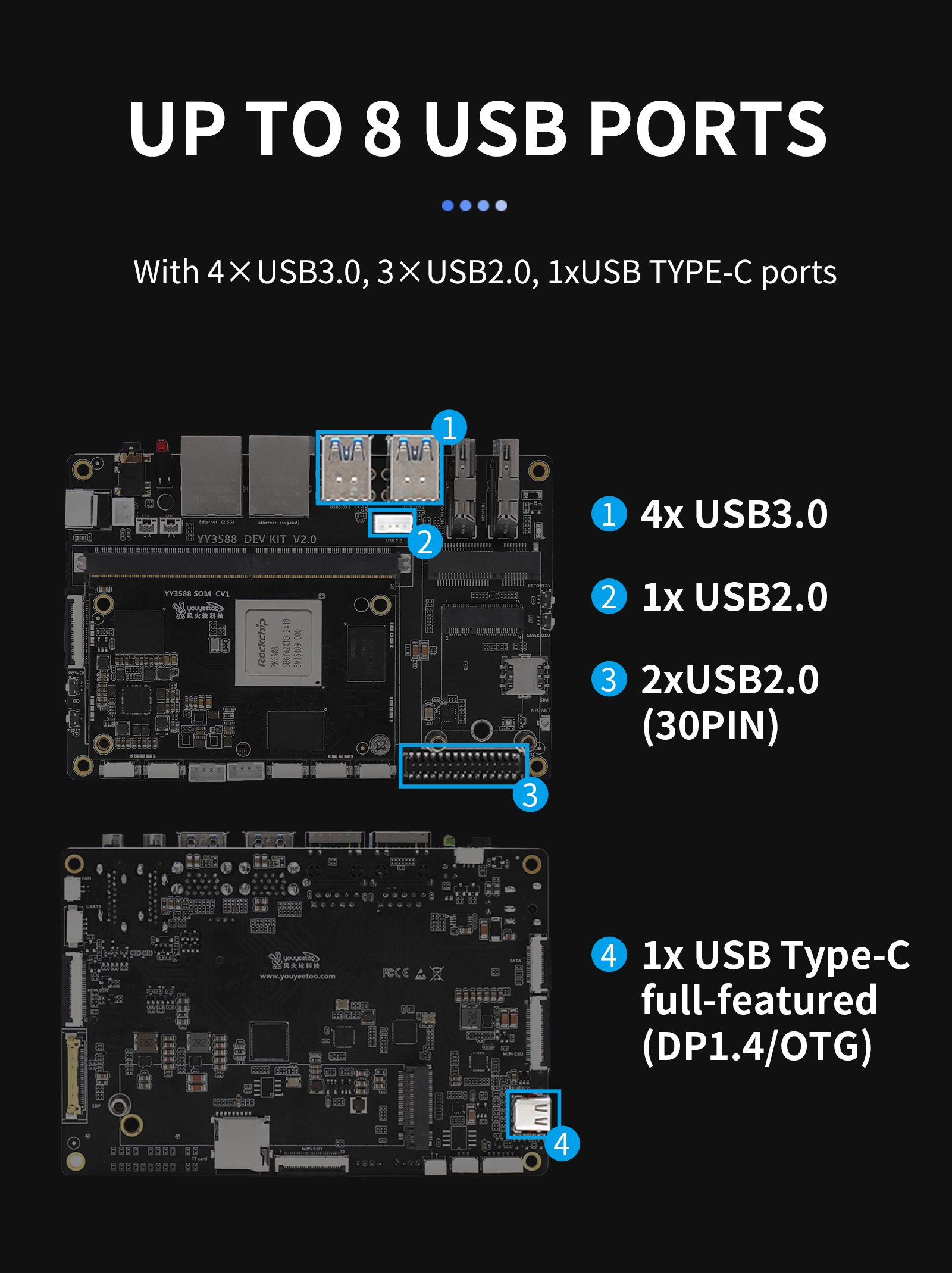

   • 4× USB 3.0 Type-A, 1× USB 2.0 Type-A.
   • GPIO (configurable for PWM, ADC, or interrupt-driven applications).

Software & Development Support

• Pre-validated OS Images:
  • Android 14: Optimized for touch-enabled HMI applications.
  • Debian 12: Full desktop/Linux SDK for custom development.
  • OpenHarmony 5.0: Ready for distributed IoT ecosystems.
• Developer Tools:
  • Complete Yocto/Buildroot BSP with kernel 5.10 LTS.
  • AI toolkit: RKNN-Toolkit2 for NPU acceleration.
  • NFC API library for Android/debian integration.
• Documentation:
  • Hardware schematics (NDA-based).
  • Step-by-step Wiki guides for peripheral configuration, OTA updates, and thermal management.

Target Applications

• Industry 4.0: Machine vision systems, robotic control, predictive maintenance.
• Edge AI: Real-time object detection, voice recognition, LLM inference.
• Smart Infrastructure: Digital signage, interactive kiosks, building automation.
• IoT Gateways: Multi-protocol edge nodes (4G/NFC/WiFi/CAN).

Technical Compliance:

• Operating temperature: -20°C to +70°C (industrial-grade).
• Certifications: CE/FCC (pending, if applicable).

Detailed Descriptions

https://wiki.youyeetoo.com/yy3588
