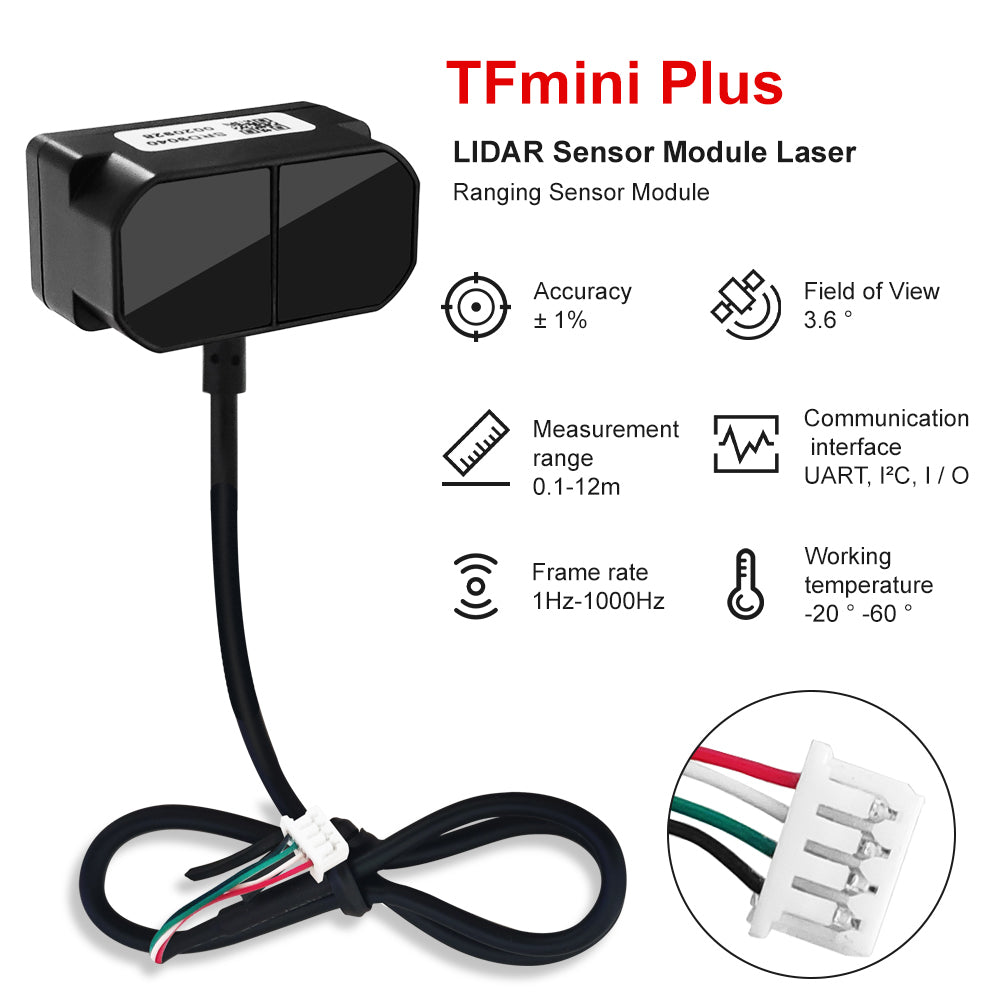

Benewake TFmini-Plus - 0.1-12m, IP65, 70 Klux, Single-Point, UART/IIC - Drone Lidar Sensor

SKU: US-TFmini-Plus-TC
Accurate up to 12m: Precision ToF laser distance measurement.
IP65 protection: Dustproof, waterproof for harsh environments.
Compact & low power: Ideal for space-limited, battery-powered devices.
TTL interface: Seamless integration into robotics, drones, automation.
Versatile use: Obstacle avoidance, altitude control across multiple sectors.
5 (7 Reviews)
$355.29 $39.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
  • Benewake Lidar TFmini Plus Sensor Module Single-Point Ranging Module 0.1-12m Measurement Range Distance,Support I/O for Drone
  • Benewake Lidar TFmini Plus Sensor Module Single-Point Ranging Module 0.1-12m Measurement Range Distance,Support I/O for Drone
  • Benewake Lidar TFmini Plus Sensor Module Single-Point Ranging Module 0.1-12m Measurement Range Distance,Support I/O for Drone
  • Benewake Lidar TFmini Plus Sensor Module Single-Point Ranging Module 0.1-12m Measurement Range Distance,Support I/O for Drone
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

TFmini-Plus - 12m IP65 Drone Lidar Sensor



Introduction


The TFMini Plus is a ToF (Time of Flight) LiDAR sensor capable of measuring the distance to an object as close as 10 centimeters (+/- 5cm up to 6m) and as far as 12 meters (+/-1% starting at 6m)! As with all LiDAR sensors, your effective detection distance will vary depending on lighting conditions and the reflectivity of your target object, but what makes this sensor special is its size. Measuring only 35x18.5x21mm, the TFMini Plus allows you to integrate LiDAR into applications traditionally reserved for smaller sensors.

Setting itself apart from the original TFmini, the TFmini Plus has been designed with an IP65 enclosure meaning it's "Dust tight & water resistant". It also passed the vibration test of drone level, which will greatly expand its application range. The TFMini Plus is easy to power at only 5V and easy to talk to using the UART communication protocol.


Features


  • High frame rate (up to 1000Hz)
  • Small size
  • Low power consumption (550mW, less than 100mW in low power mode)
  • IP65 protection


Shipping List


TFmini Plus 12m Lidar Sensor x1


Applications


  • Tank Level Sensing
  • Parking Position Sensing
  • Model Aircraft Altimeter
  • Occupancy Counting
  • Security System
  • Human Machine Interface


Specification


  • Detection range: 10 cm to 12 m
  • Accuracy: ±5 cm  @< 6 m, ±1%  @> 6 m
  • Resolution: 5 mm
  • Refresh Rate: 1 to 1000 Hz
  • Ambient light immunity: 70 Klux
  • Field of View: 3.6°
  • Ingress Protection: IP65
  • Voltage requirements: 5V±0.5V
  • Current requirements: 110 mA average, 140 mA peak
  • Communication: Serial, I2C
  • Dimensions: 0.73 x 1.38 x 0.83 in (18.5 x 35 x 21 mm)
  • Operating temperature range: -4 to 140 °F (-20°C to 60 °C)


Detailed Descriptions




How to connect TFmini Plus with Arduino





TFmini Plus Lidar Range Finder module (6)

TFmini Plus Lidar Range Finder Sensor TFmini Plus Lidar Range Finder module TFmini Plus Lidar Range Finder moduleTFmini Plus Lidar Range Finder module  (2)TFmini Plus Lidar Range Finder module (2)TFmini Plus Lidar Range Finder module (3)TFmini Plus Lidar Range Finder module (4)
