BPI-R3 Mini Router board with MediaTek MT7986(Filogic 830),support Wi-Fi 6, 2 2.5GbE network

SKU: BPDPR3MINI01
MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53
Wifi 6 2.4G/5G(MT7976C)
2G DDR RAM
8G eMMC flash
128MB Nand flash
2x 2.5GbE network port
1x M.2 Key B USB inerface
1x M.2 KEY M PCIe inerface
1x USB2.0 interface
0.0 (0 Reviews)
$0.00 $86.05
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity
-
+
  • BPI-R3 Mini Router board with MediaTek MT7986(Filogic 830),support Wi-Fi 6, 2 2.5GbE network
  • BPI-R3 Mini Router board with MediaTek MT7986(Filogic 830),support Wi-Fi 6, 2 2.5GbE network
  • BPI-R3 Mini Router board with MediaTek MT7986(Filogic 830),support Wi-Fi 6, 2 2.5GbE network
  • BPI-R3 Mini Router board with MediaTek MT7986(Filogic 830),support Wi-Fi 6, 2 2.5GbE network
  • BPI-R3 Mini Router board with MediaTek MT7986(Filogic 830),support Wi-Fi 6, 2 2.5GbE network
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews
R3 MINI with Case Link :https://www.youyeetoo.com/products/bpi-r3-mini-router-board-with-mediatek-mt7986filogic-830,support-wi-fi-6,-2-25gbe-network
20W PD Power : https://www.youyeetoo.com/products/20w-pd-power-supply,-output-5v3a-9v222a-12v166a


Getting_Started


BPI-R3 Mini router board development board using Mediatek MT7986A(Filogic 830) quad-core ARM A53 chip design, onboard 2G DDR memory, 8G eMMC and 128MB SPI NAND storage, is a very high performance open source router development board. It supports Wi-Fi6 2.4G/5G (MT7976C), two 2.5G network ports, NVME SSD(2230), 4G LTE, and 5G network expansion.
  • MediaTek MT7986(Filogic 830) Quad core ARM Cortex A53
  • Wifi 6 2.4G/5G(MT7976C)
  • 2G DDR RAM
  • 8G eMMC flash
  • 128MB Nand flash
  • 2x 2.5GbE network port
  • 1x M.2 Key B USB inerface
  • 1x M.2 KEY M PCIe inerface
  • 1x USB2.0 interface

Hardware spec

HardWare Specification of Banana pi BPI-R3 Mini
CPU MediaTek MT7986A(Filogic 830) Quad-core ARM Cortex-A53
SDRAM 2 GB DDR4
On board Storage 128MB SPI NandFlash,8GB eMMC
On board Network 2x 2.5GbE Ethernet
Wifi Wifi6 2x2 2.4G + 3x3 5G(MT7976C)
M.2 Key B 1x M.2 Key B interface
M.2 Key M 1x M.2 KEY-M PCIe inerface
USB 1x USB 2.0
Buttons Reset button, boot switch
5x Leds Power ,System, Wifi 2G ,Wifi 5G ,4G Lte ,SSD
DC Power 20W/12V,USB TypeC PD
Sizes 65x65mm
Weight 100g

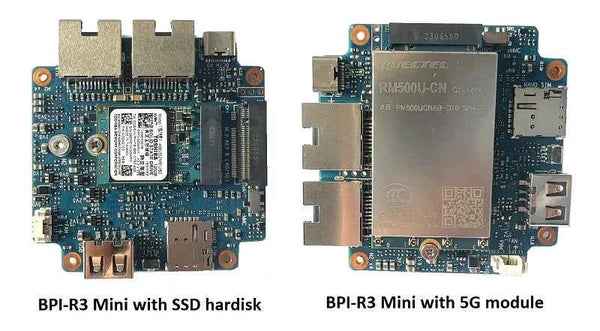

SSD and 5G support

BPI-R3 Mini ssd 5g.jpg

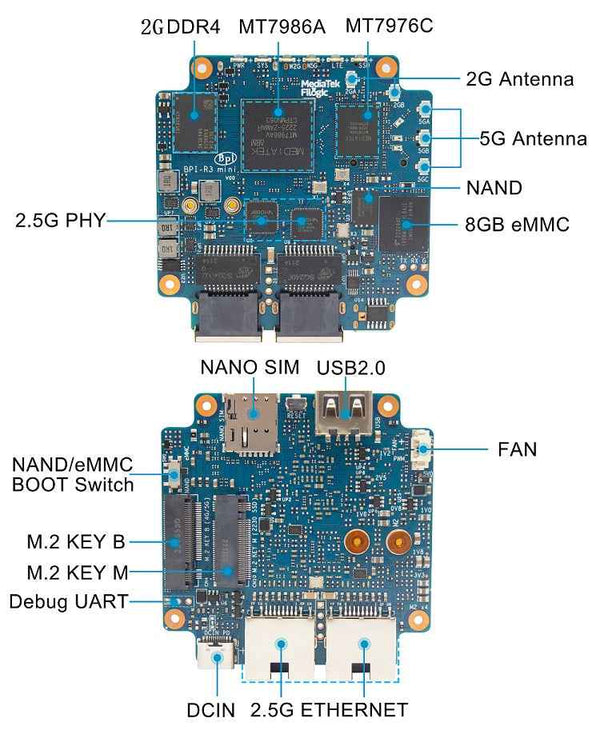

Hardware interface:

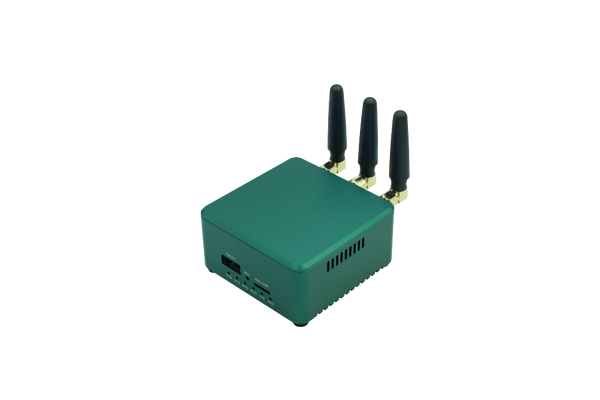

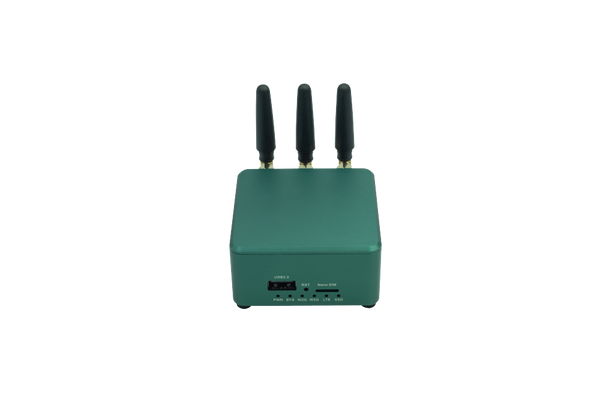

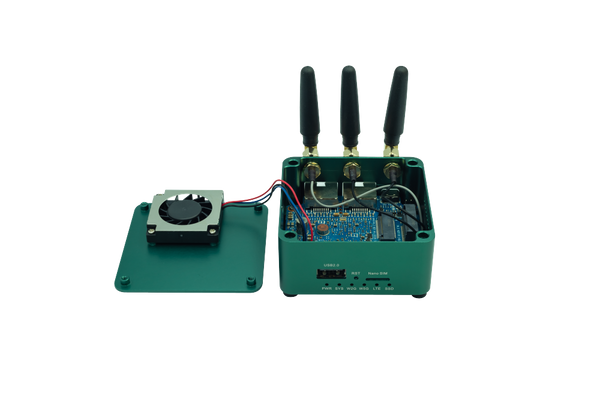

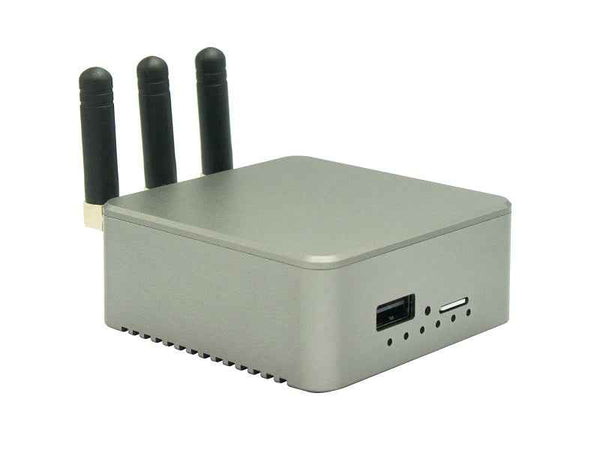

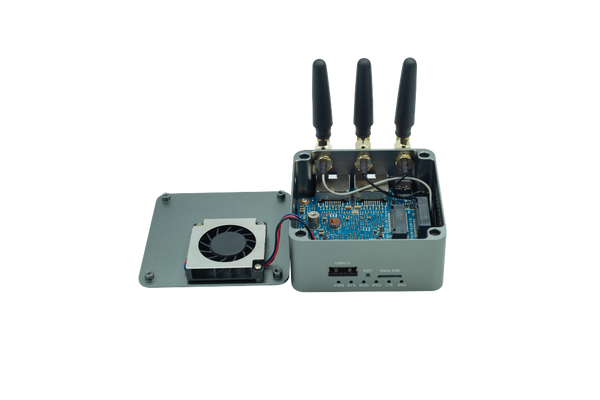

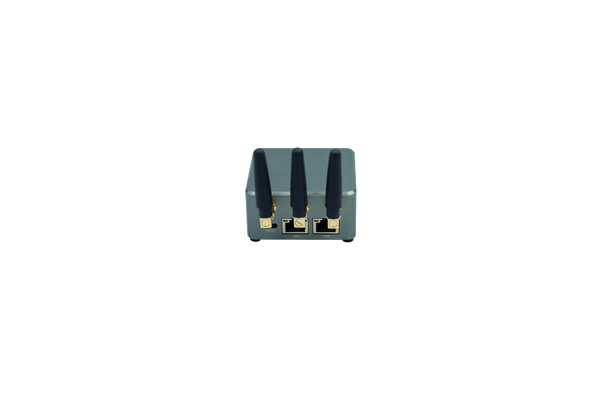

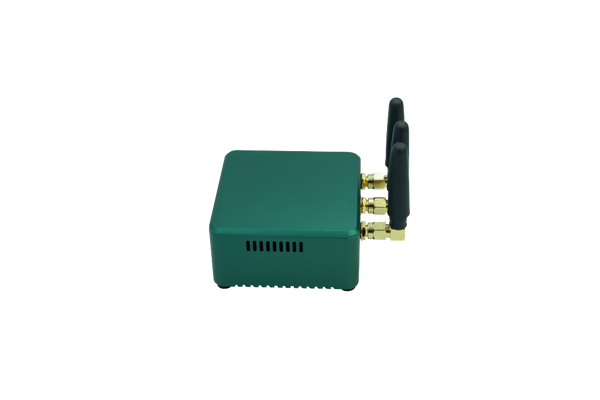

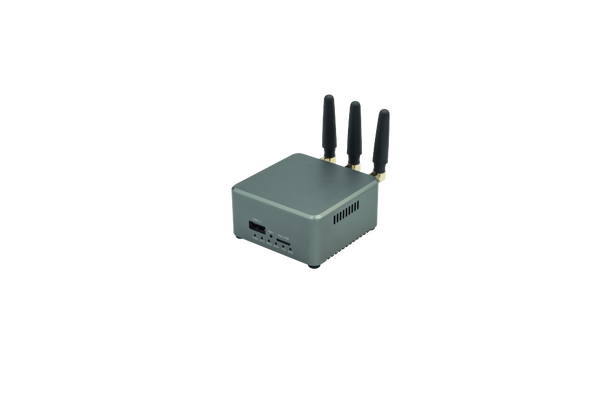

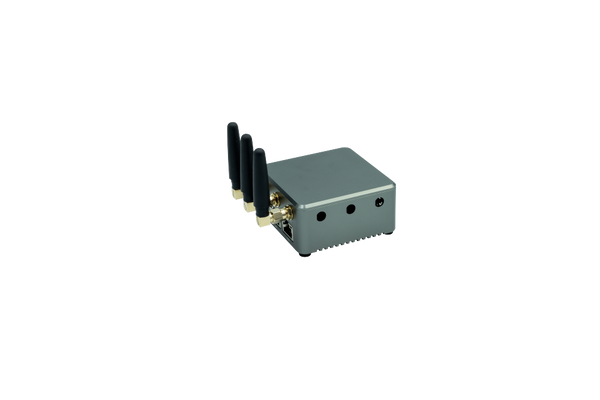

BPI-R3 Mini with Case:
