CM3588 Nas Kit - Rockchip RK3588 CM - NAS / Server / Android TV

• Quick Start： WIKI: Click here
• Tips
  • The NAS kit does not include a power supply, to purchase a power supply, please click the link:12V 2A DC Power: 12v2a power supply adapter
  • Tips: Due to Linus Tech, stock of the NAS Kit has been sold out and the factory is now working to produce it. It is expected to be in stock in early May. If you have any questions, please contact:[email protected]. Thank you for your understanding.
  • [2024-04-10 News]
    The factory informs the change of raw material price, so the price of CM3588 16GB will be increased about 13USD, other models remain unchanged.
  • For customers who have already placed an order, the price will remain unchanged.

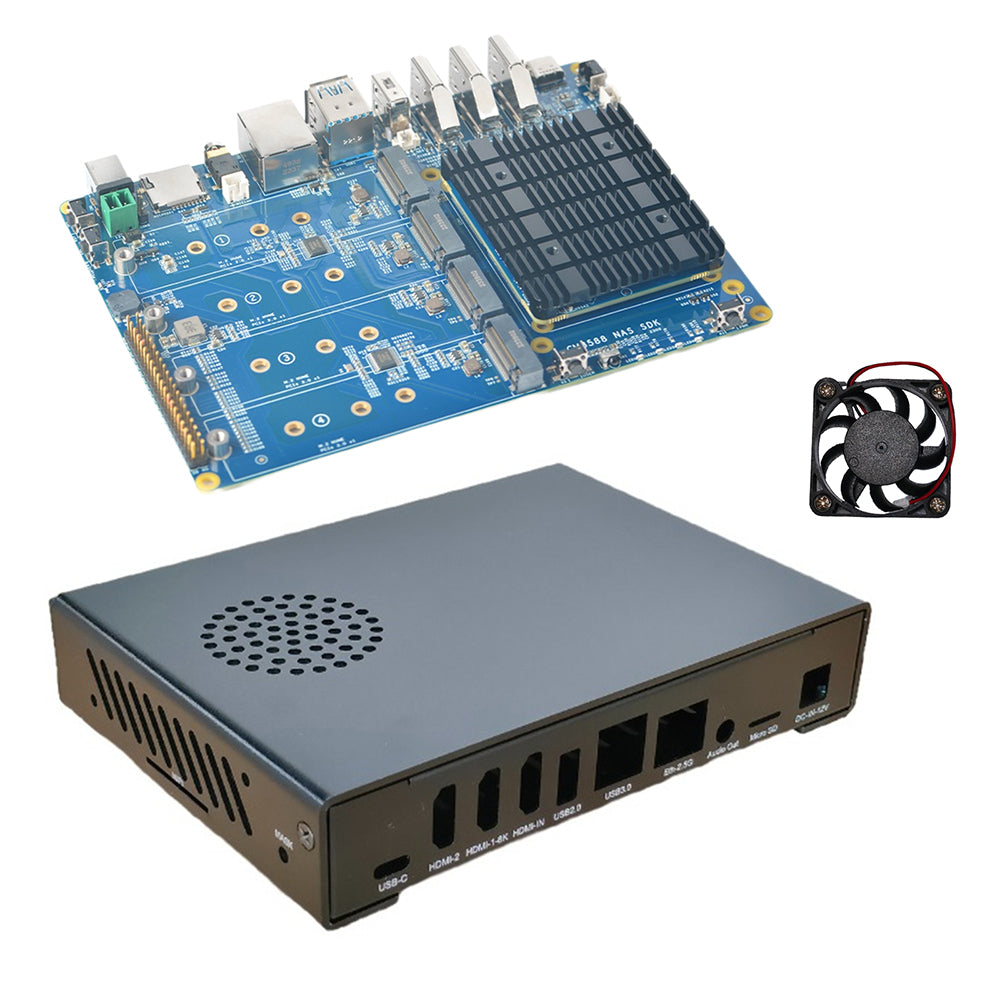

• The Case is still under-designed, You can subscribe and be notified when it hits the shelves: https://www.youyeetoo.com/products/cm3588-nas-kit-case

Introduction

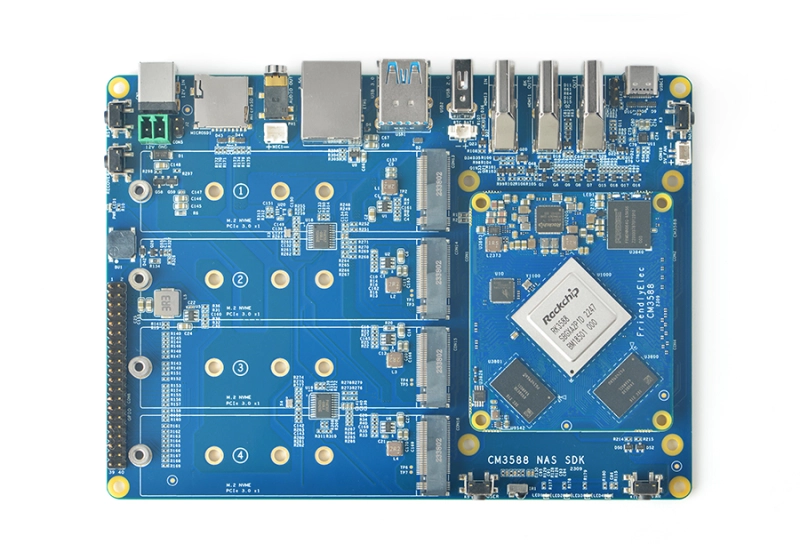

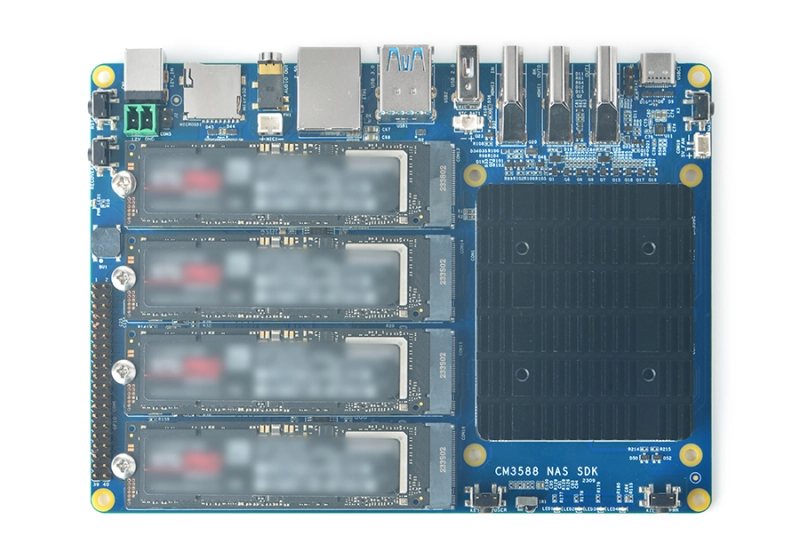

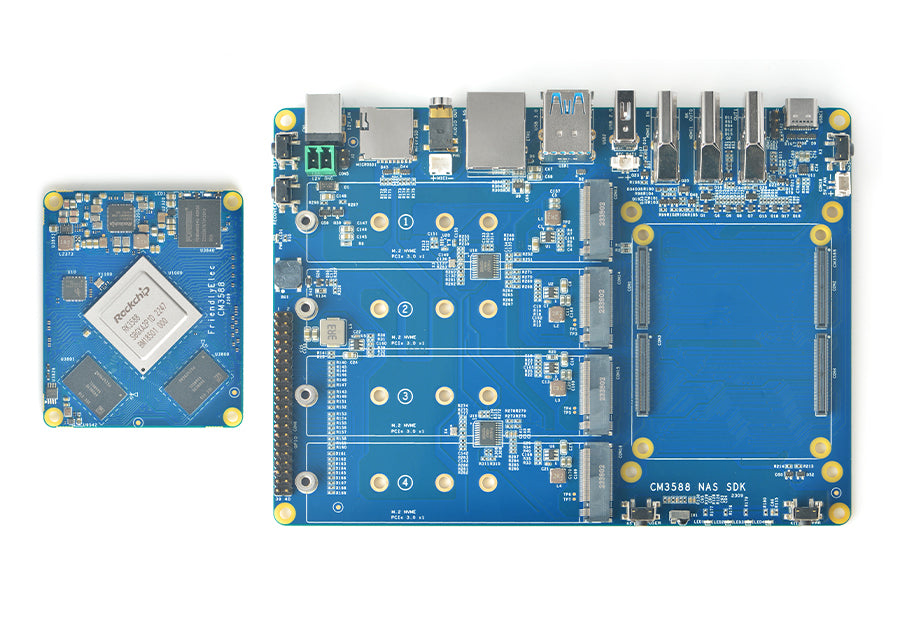

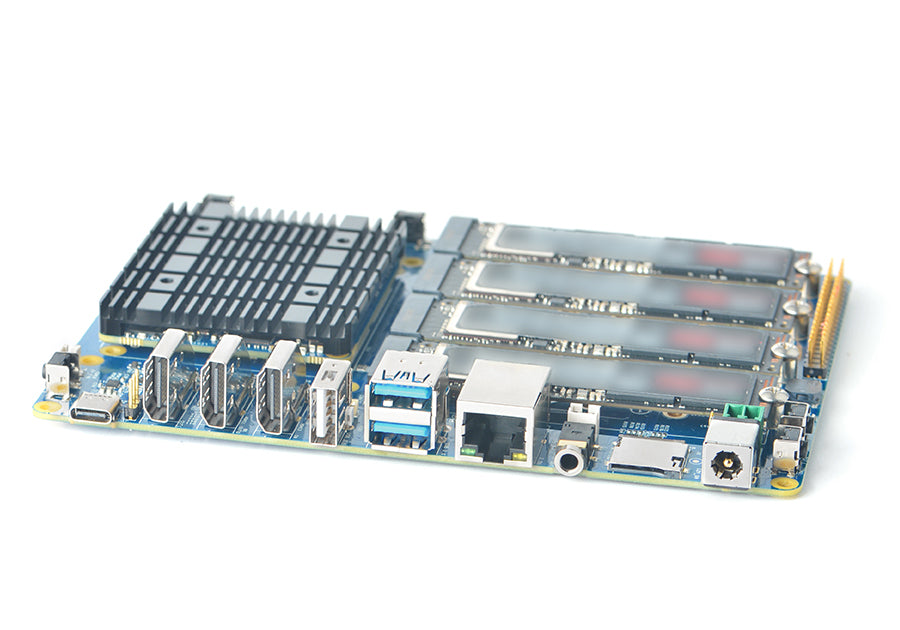

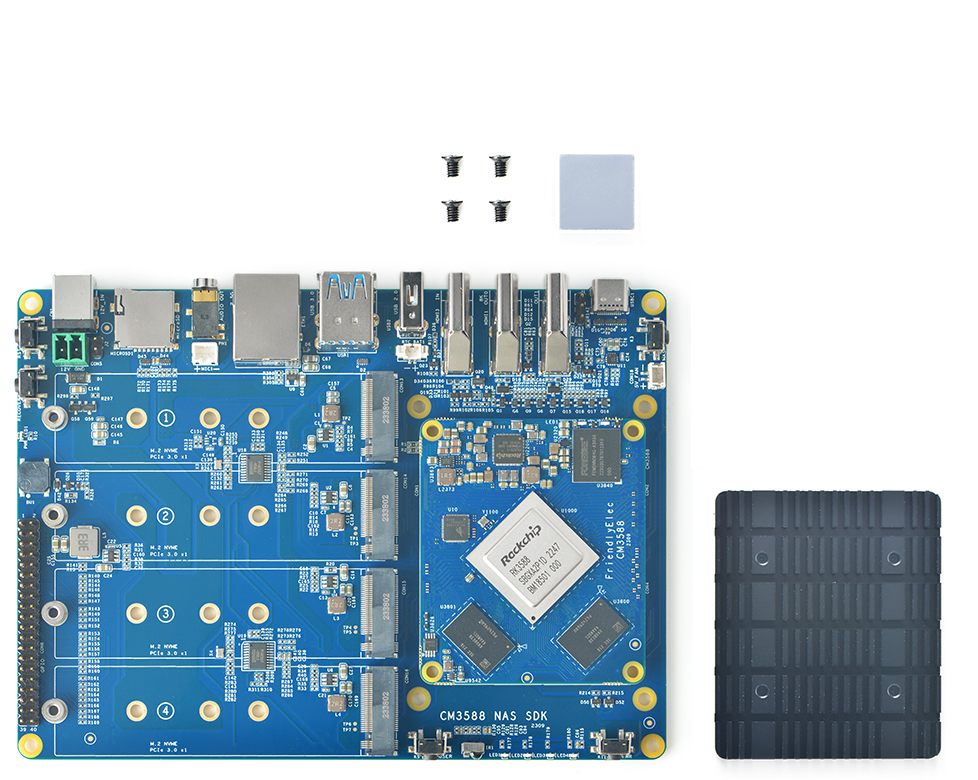

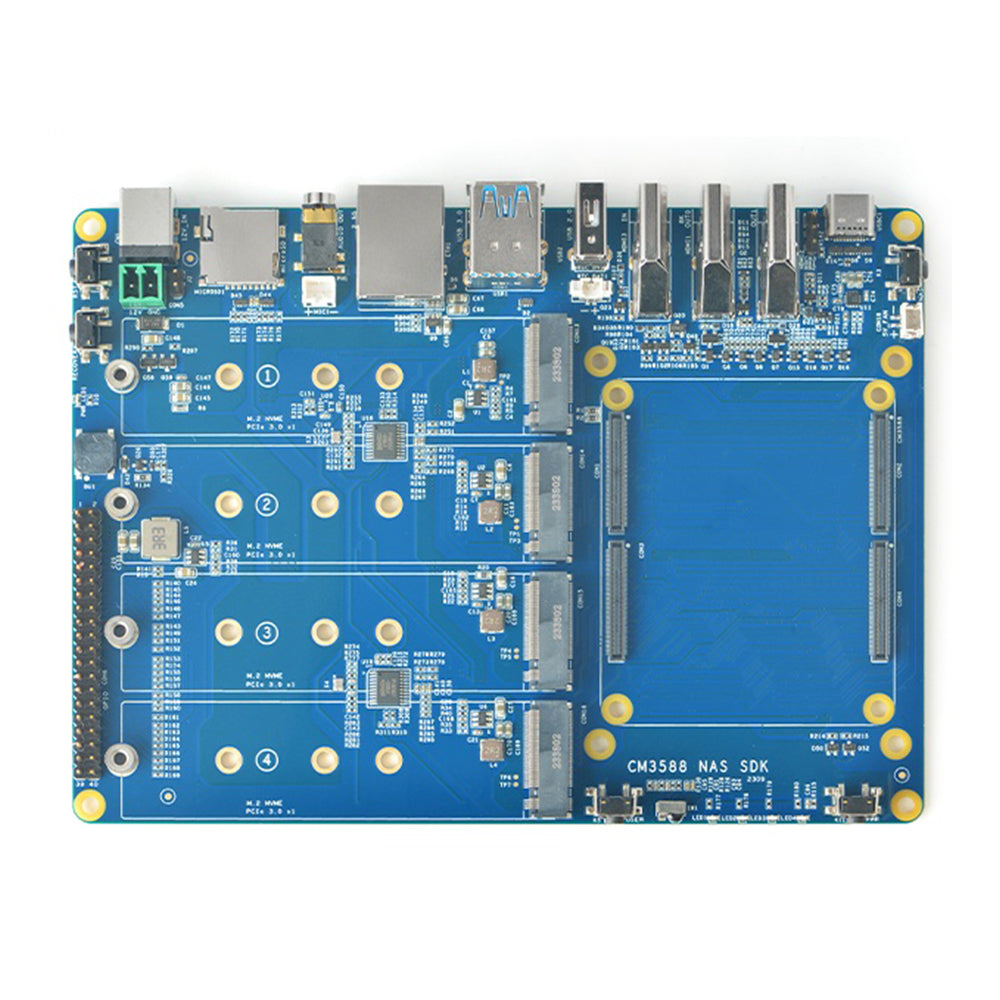

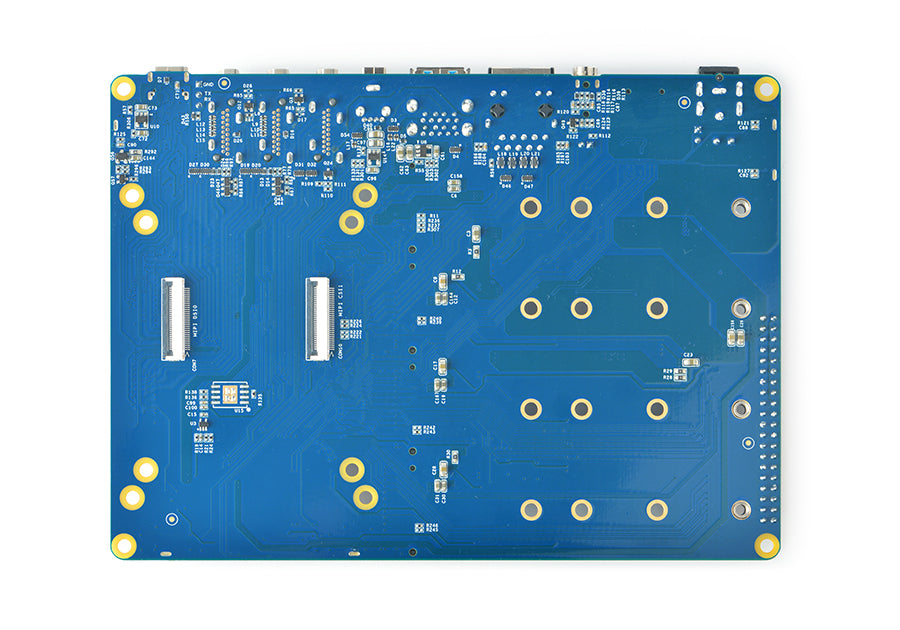

The CM3588 NAS Kit is a carrier board designed based on the CM3588 core module. It includes 4x M.2 Key M PCIe 3.0 x1 slots, 2x USB3.0 Type-A ports, 1x USB3.0 Type-C interface with DP support, dual HDMI OUT ports, and one HDMI IN port, and a 2.5Gbps Ethernet interface.

Features

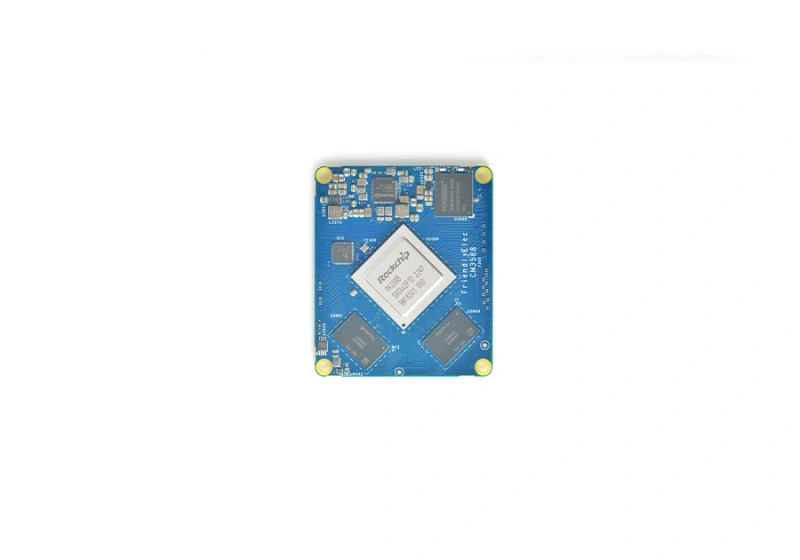

• The CM3588 is a high performance ARM module designed and developed by FriendlyElec. It is based on Rockchip’s RK3588 SoC. The regular version has 4/8/16GB LPDDR4x RAM, and 64GB eMMC Flash(optional), The CM3588 has four 100-pin connectors, exposing nearly all IO resources.

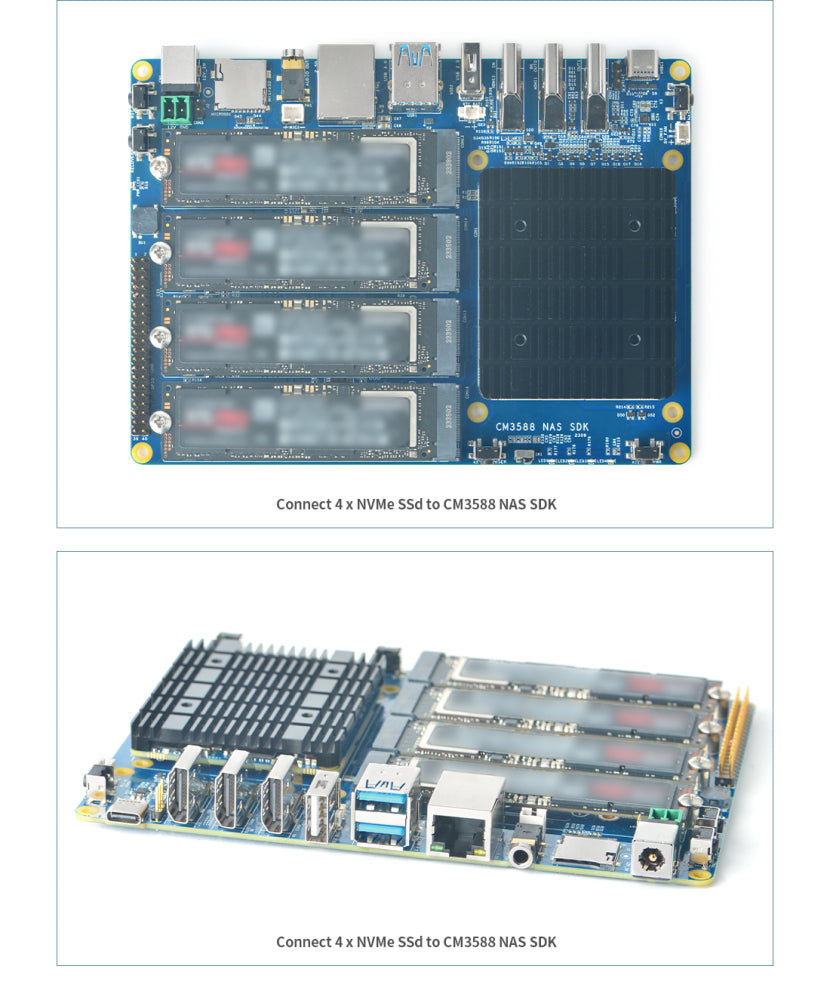

• The CM3588 computing module boasts a variety of peripherals and expansion interfaces. It can connect to a carrier board supporting 4 NVMe high-speed solid-state drives with read/write speeds of up to 1GB/s. Additionally, it includes dual HDMI-Out display interfaces, 1 HDMI-In interface, 2 USB3.0 ports, 1 USB2.0 port, a 2.5G Ethernet interface, and more.
• The carrier board (CM3588 NAS Kit) has 2 HDMI output interfaces and 1 HDMI In interface that can decode and play videos in formats such as up to 8K60p H.265/VP9 and 8K30p H.264, with the ability to record 4K60p H.265 videos.
• The CM3588 offers the OpenMediaVault NAS system and supports various operating systems including Android, Ubuntu, Debian, Buildroot, and OpenWrt. It has well-established software support. It is a perfect platform for startups to develop applications and prototypes in facial detection, machine vision, VR, autonomous driving, deep learning, AI, etc.

Shipping List

Only CM board
1x CM3588 Computer Module

CM board + NAS Carrier Board
1x CM3588 NAS Kit (Power not included)

NAS Carrier Board
1x NAS Carrier Board

Applications

NAS and more

Specification

• SoC: Rockchip RK3588
  • CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
  • GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
  • VPU: 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
  • NPU: 6TOPs, supports INT4/INT8/INT16/FP16
• RAM: 64-bit 4GB/8GB/16GB LPDDR4X at 2133MHz
• Flash: 0GB/64GB eMMC, at HS400 mode
• 1 x microSD interface, support up to SDR104 mode
• 1 x On-board PCIe 2.5G ethernet controller (RTL8125B)
• USB:
  • 2 x USB 3.1 Gen1 OTG which combo with DP display（up to 4Kp60）
  • 1 x USB 3.1 Gen1 Host
  • 2 x USB 2.0 Host
• PCIe:
  • up to 4 x PCIe interfaces
    • 2 x PCIe 2.1 x1 and 2 x PCIe 3.0 x2
    • or 2 x PCIe 2.1 x1 and 1 x PCIe 3.0 x4
    • or 1 x PCIe 2.1 x1, 1 x PCIe 3.0 x2, and 2 x PCIe 3.0 x1
    • or 4 x PCIe 3.0 x1
• HDMI output:
  • 2 x HDMI outputs which is compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
  • one support displays up to 7680x4320@60Hz, another one support up to 4Kp60
  • Support RGB/YUV(up to 10bit) format
• HDMI input: 1 x HDMI input, up to 4Kp60
• MIPI RX:
  • 2 x 4lane MIPI DPHY CSI RX which support x4 mode or x2+x2 mode ,compatible with MIPI V1.2
  • 2 x 4lane MIPI_D/CPHY_RX
• MIPI TX:
  • 2 x 4-lane MIPI D-PHY/C-PHY Combo PHY TX, compatible with MIPI DPHY 2.0 or CPHY 1.1
• Codec:
  • On-board ALC5616 Codec
  • 1 x stereo headphone output ( 20mW/CH, THD+N <= -80dB, 16Ohm Load )
  • 1 x single-end microphone input
• GPIO:
  • up to 3 x SPIs, 7 x UARTs, 6 x I2Cs, 15 x PWMs, 3 x I2Ss, 1 x SDIO, 81 x GPIOs
• others:
  • low power RTC (HYM8563TS) with backup battery input
  • Support 38Khz IR input
  • MASK button for eMMC update, reset button, Power button, and recovery mode button
  • Debug UART,3.3V level, 1500000bps
  • 2 x GPIO Controlled LED (SYS, LED1)
• Power supply: 5~20VDC input, 15W max
• PCB: 8 Layers, 55x65x1.6mm
• Stacking height: 6.6mm
• Connector: 4 x DF40C-100DP-0.4V(51), the mating connector is DF40HC(3.0)-100DS-0.4V(51)
• Ambient Operating Temperature: 0℃ to 70℃

Detailed Descriptions
