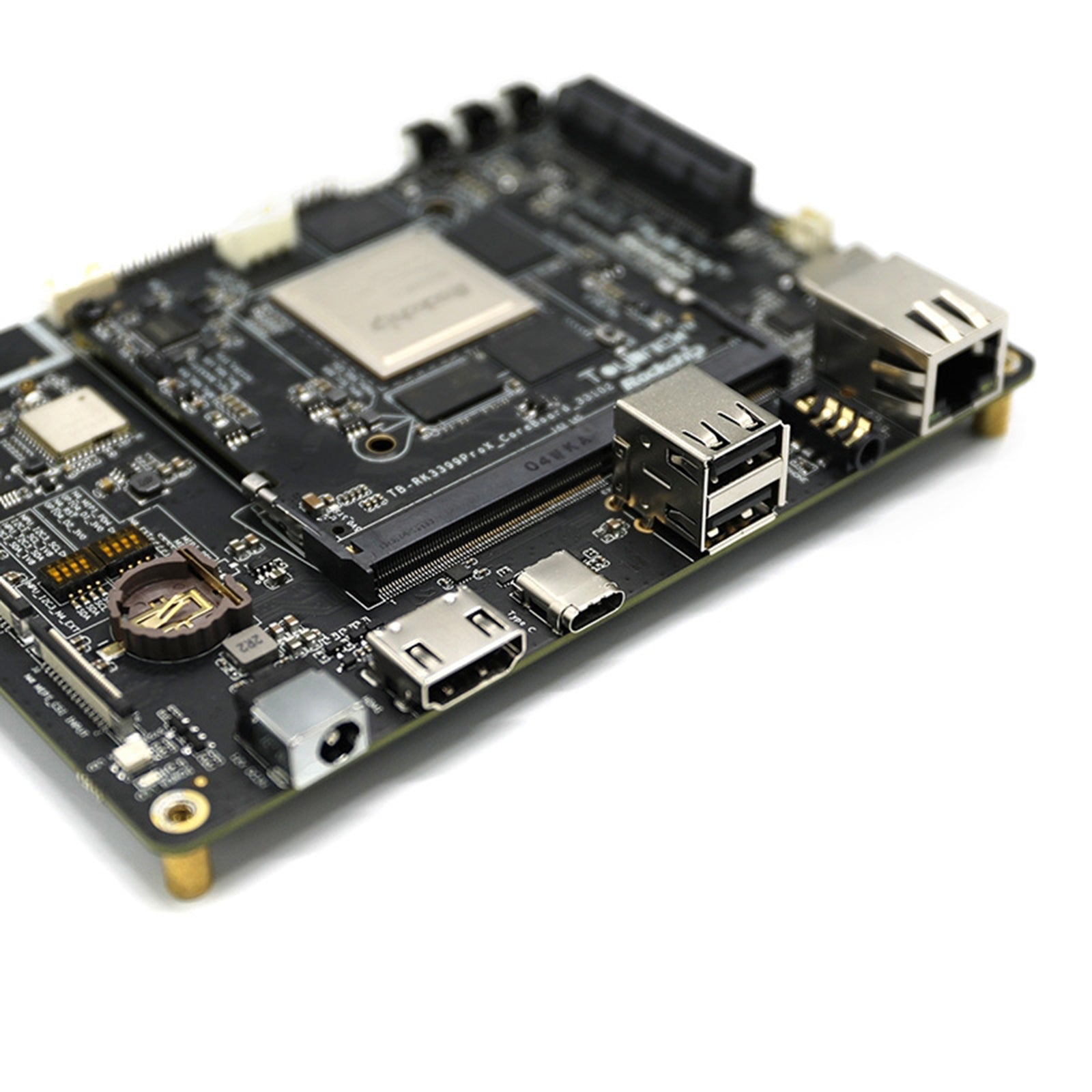

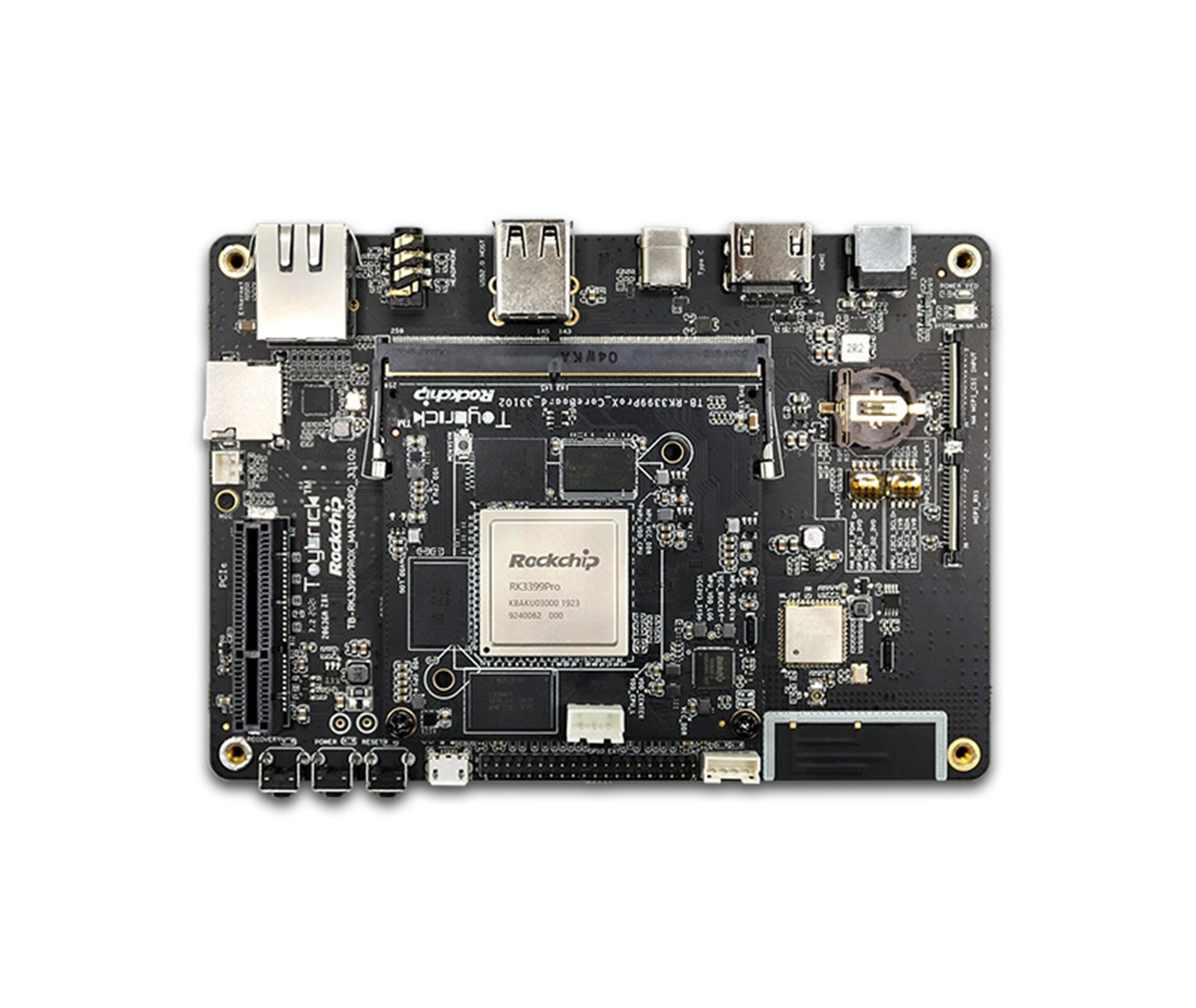

TB-RK3399ProX artificial intelligence development board
Equipped with high-performance AI processing chip RK3399Pro, integrated neural network processor NPU, the computing power is as high as 3.0Tops.
It adopts the combination of core board and backplane, and is flexibly used in various embedded artificial intelligence fields.
Smaller size and strong compatibility
The size is only 69.6mm×70mm, which meets the space requirements of small terminal products.
SO-DIMM 260P standard gold finger interface to meet various signal requirements.
Support multiple operating systems Android, debian
Combination of core board + backplane to form a complete industrial application motherboard
Product Interface Information
|
Core board specifications |
|
|
SOC |
Rockchip RK3399Pro |
|
CPU |
Dual-core Cortex-A72 up to 1.8GHz |
|
Quad-core Cortex-A53 up to 1.4GHz |
|
|
GPU |
ARM Mali-T860 MP4 Quad-core GPU |
|
Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 |
|
|
Support AFBC（framebuffer compression） |
|
|
NPU |
Support 8bit/16bit operation，Support TensorFlow、Caffe model,Computing performance up to 3.0TOPS |
|
VPU |
Support 4K VP9 and 4K 10bits H265/H264 video decoding,reach up to 60fps |
|
1080P multi-format video decoding (WMV, MPEG-1/2/4, VP8) |
|
|
1080P video encoding, support H.264, VP8 format |
|
|
Video post processor: de-interlacing, denoising, edge/detail/color optimization |
|
|
CPU Memory |
2GB/4GB LPDRR4 |
|
NPU Memory |
1GB DRR3 |
|
Storage flash |
16GB/32GB eMMC for CPU |
|
input power |
DC 12V/2A |
|
OS |
Android、Linux |
|
Core board size |
69.6mm×70mm |
|
PCB Specifications |
10-layer board, thickness 1.2mm |
|
Interface Type |
SODIMM-260Pin |
|
Baseplate Specifications |
|
|
display interface |
1ch HDMI2.0(Type-A) interface, support 4K/60fps output 1 channel DP1.2 (Type-A) interface, support 4K@60fps output 1 MIPI interface, support 1920*1080@60fps output 1 channel eDP1.3 interface, support 2K@60fps output |
|
audio port |
1 channel HDMI audio output 1 channel Speaker, speaker output 1 headphone output 1 microphone, onboard audio input |
|
Ethernet |
10/100/1000Mbps Ethernet, RJ45 interface |
|
Wireless network |
Support 5G/2.4G dual-band wifi, BT4.2 |
|
camera interface |
2-way MIPI-CSI camera interface (CPU side supports up to 13Mpixel, NPU side supports up to 2Mpixel) |
|
USB |
2x USB2.0 Host, Type-A (CPU side) 1x USB3.0 OTG, Type-C (CPU side) |
|
PCIe |
1-way PCIe x4 standard interface, support expansion based on PICe high-speed WIFI, storage and other devices |
|
button |
1x Recovery button; 1x Reset button; 1x Power button; |
|
debugging |
1channel debugging serial port (Micro USB interface) |
|
serial port |
1-way uart interface |
|
Extension ports |
The 40Pin expansion interface includes:
|
