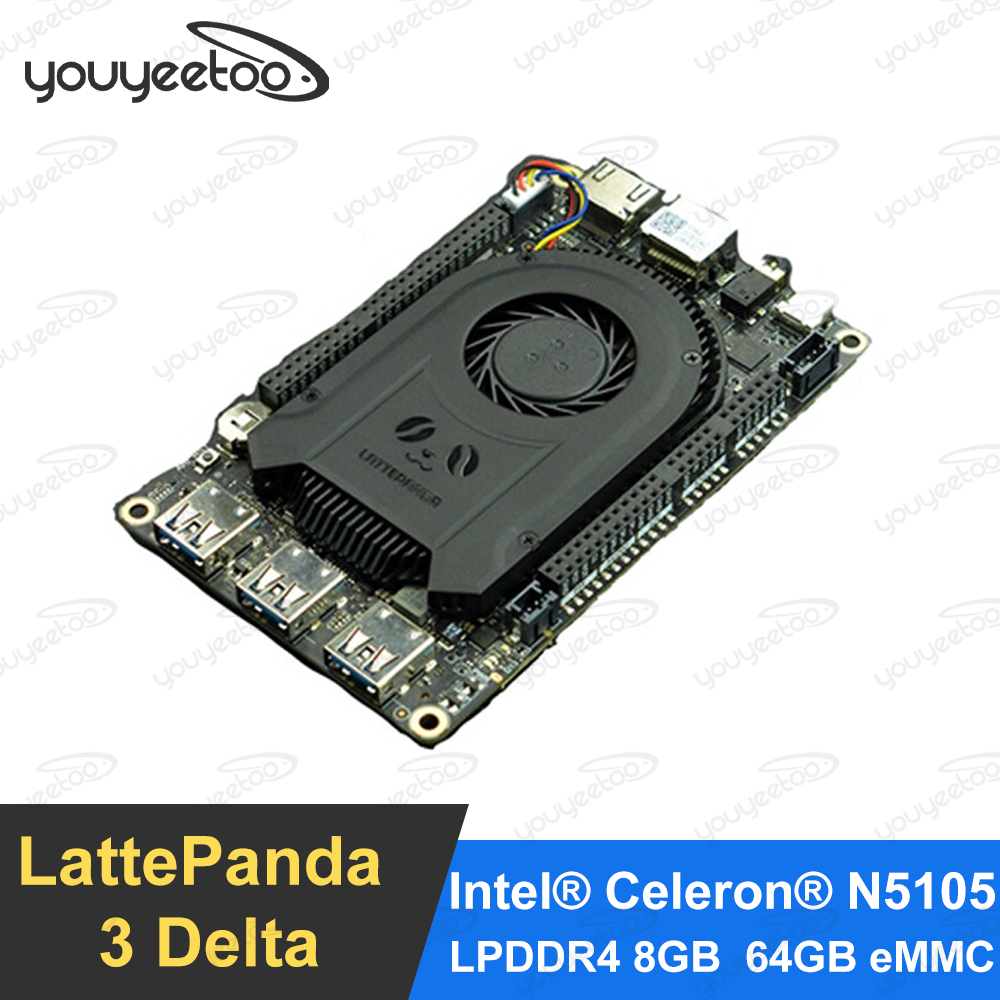

LattePanda 3 Delta - Windows/Linux Single Board Computer Quad-Core CPU LPDDR4 8GB/64GB eMMC UHD Graphics

To download the Tools, Driver, and Firmware use the following link:

https://youyeetoo.com/blog/lattepanda-3-delta-191​

Note: Please note the type that you want:

Bundle 1： 8GB+ 64GB Unactivated

Bundle 2： 8GB+ 64GB with Enterprise License

INTRODUCTION

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​

FEATURES

Enhanced CPU performance, it features the Intel 11th generation mobile quad-core processor N5105 and offers significantly improved performance.

Upgraded to 8GB RAM and 64GB eMMC, substantial high-bandwidth RAM and speedy solid-state drive to smoothly run your multiple applications at once, and ensure seamless performance and reliable multitasking.

ULTRA-FAST connectivity: With a lightning-fast Wi-Fi 6 and Gigabit Ethernet, stream videos or download massive files quickly

Higher data transfer rate: 1 x USB3.2 gen2, 2x USB 3.2 gen1, and 1x USB Type C for high data transfer speed, up to 10X faster than USB2.0

Support Dual 4K HDR and 3-Way Video Output, including HDMI, Display port over USB-C, and eDP for superb flexibility

Rich IOs and Integrated Arduino Coprocessor ATmega32U4, compatible with 200+ sensors and actuators

Support Windows(Win 10 and Win 11) & Linux OS

APPLICATIONS

Home Theater

Mini Game Console

4K Portable Video Streamer

Monitoring System

SPECIFICATION

CPU: Intel® Celeron® N5105

Core: 2.0~2.9GHz Quad-Core, Four-Thread

Graphics: Intel® UHD Graphics (Frequency: 450 – 800MHz)

Memory: LPDDR4 8GB 2933MHz

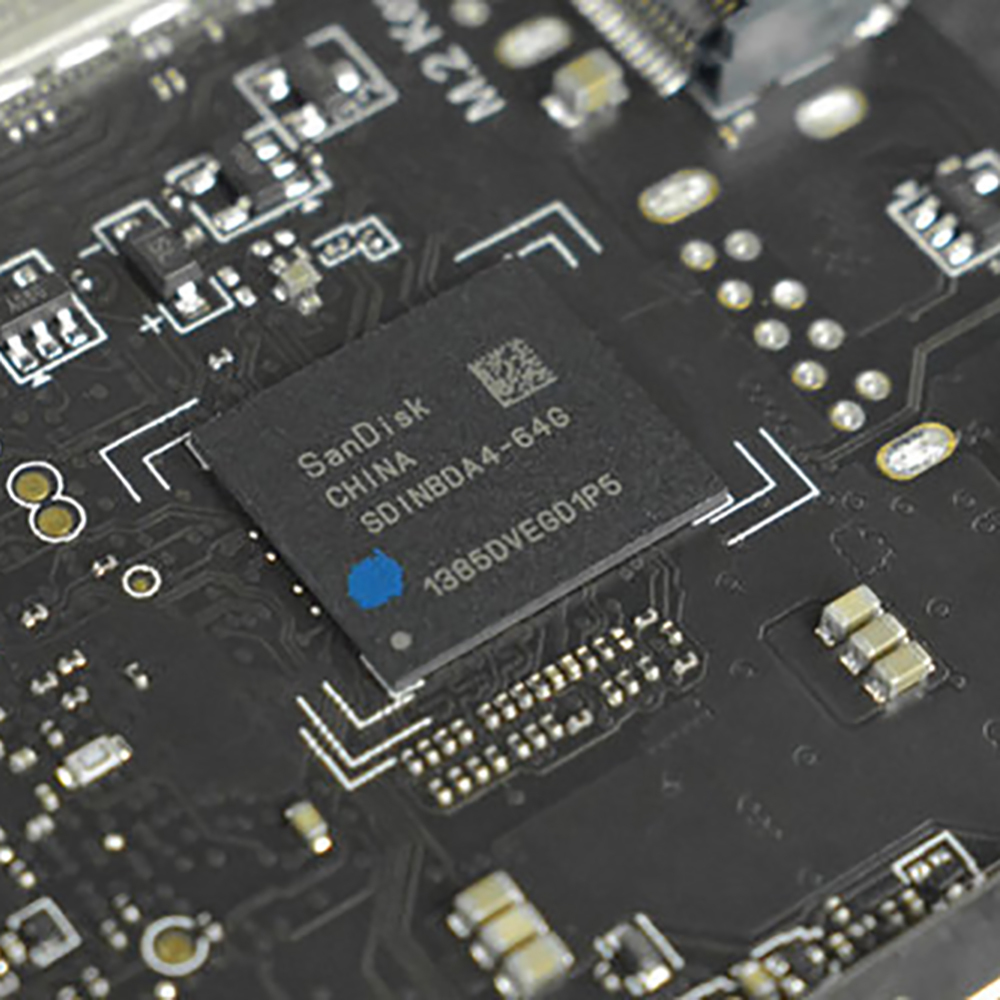

Storage: 64GB eMMC V5.1

Expansion Slots:

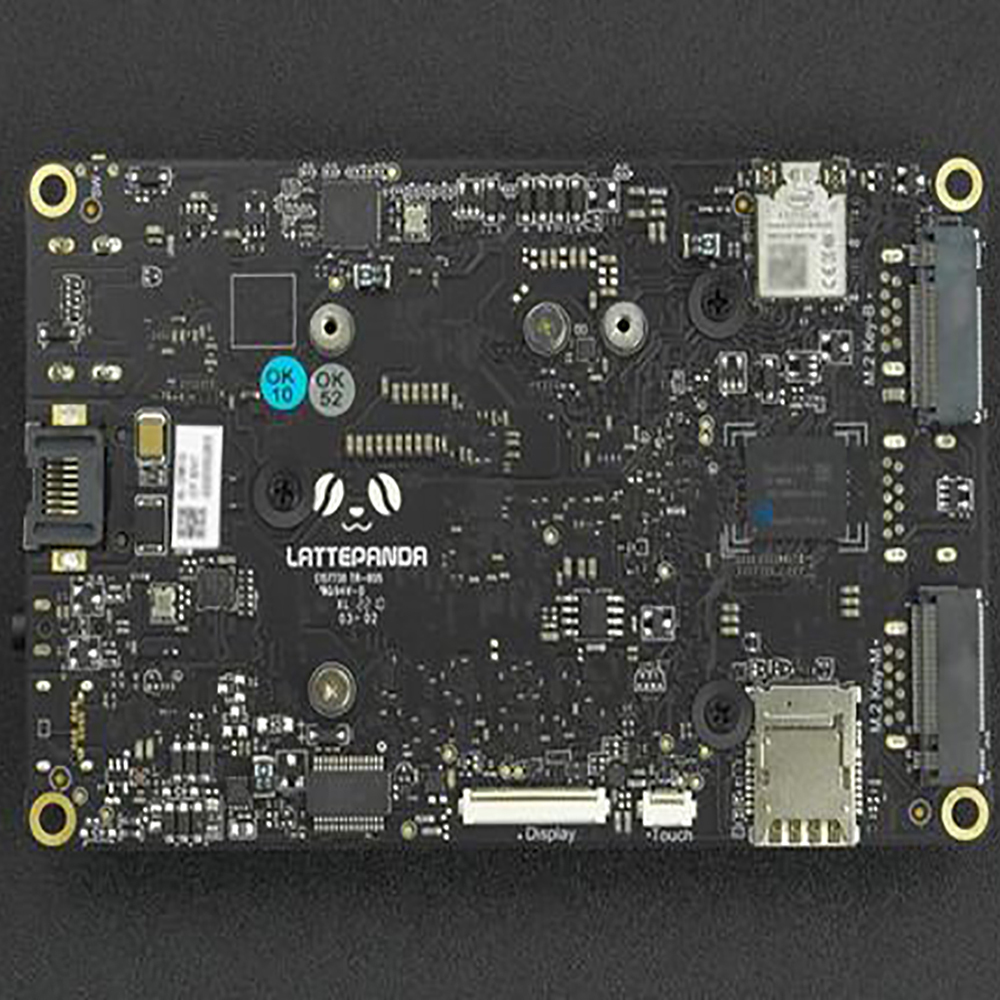

• 1x M.2 M Key, PCIe 3.0 2x, Supports NVMe SSD

• 1x M.2 B Key, PCIe 3.0 1x, USB 2.0, USB 3.0, SATA, SIM, Supports SATA, 4G & 5G module

Connectivity:

• 1x Wi-Fi 6 @ 2.4GHz &5 GHz(160MHz)

• 1x Bluetooth 5.2

• 1x Intel Gigabit Ethernet

USB Ports:

• 2x USB 3.2 Gen1 Type A

• 1x USB 3.2 Gen2 Type A

• 1x USB Type C, Supports PD, DP, USB 2.0

• 1x USB 2.0 Pin Header

Display:

• 1x HDMI 2.0b: Up to 4096x2160 @ 60Hz HDR

• 1x DP 1.4: Up to 4096x2160 @ 60Hz HDR

• 1x eDP: Extendable Touch Displays up to 1920*1080

TPM: built-in TPM(2.0)

Co-processor: Arduino Leonardo ATMEGA32U4

Audio: Microphone + Headphone Combo Connector

GPIO & Other Features:

• 12x Analog Inputs*

• Up to 23x Digital Input/Output (7 PWM)*

• 1x UART

• 1x I2C

• 1x SPI

• 1x Audio Connector

• 1x 4-Pin RS232 Header

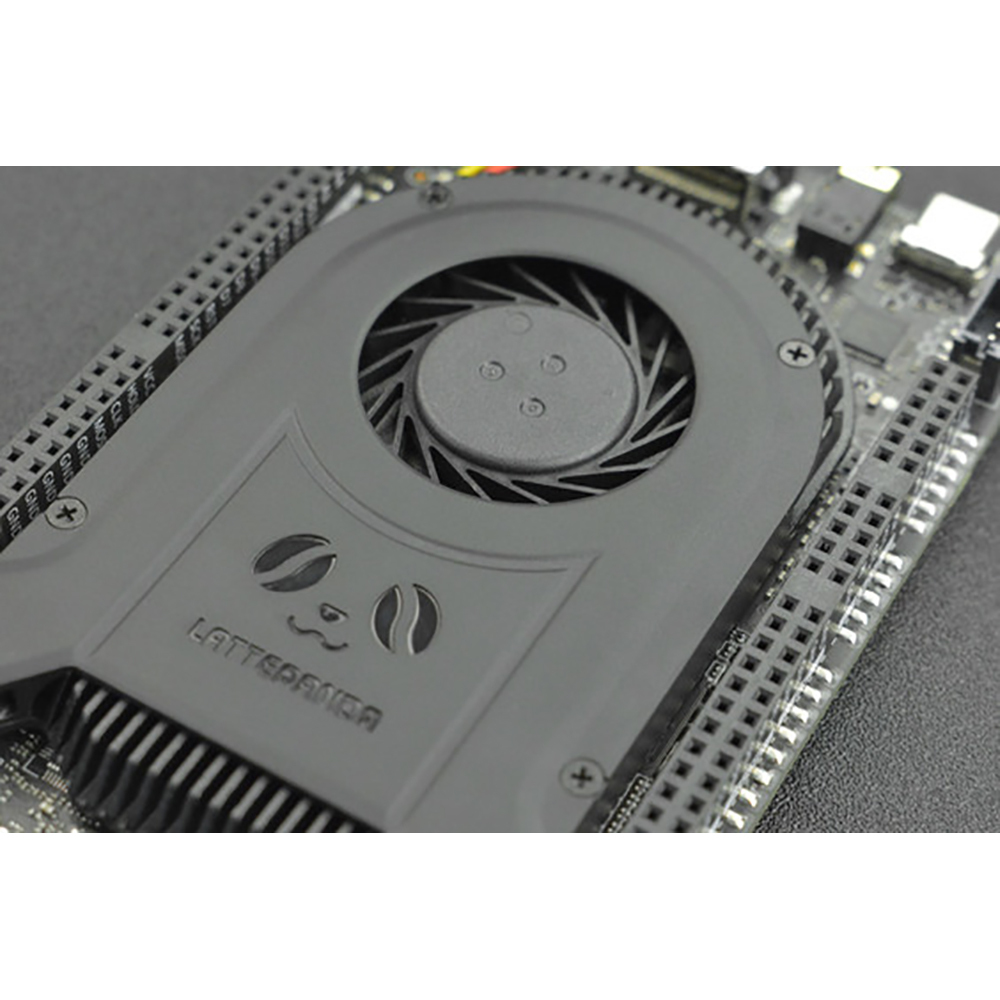

• 1x Fan Port (4 Pin 1.25mm PWM 5V）

• 1x 4-Pin Header (Power and Switch)

• OS Support: Windows 10 & Windows 11 & Linux

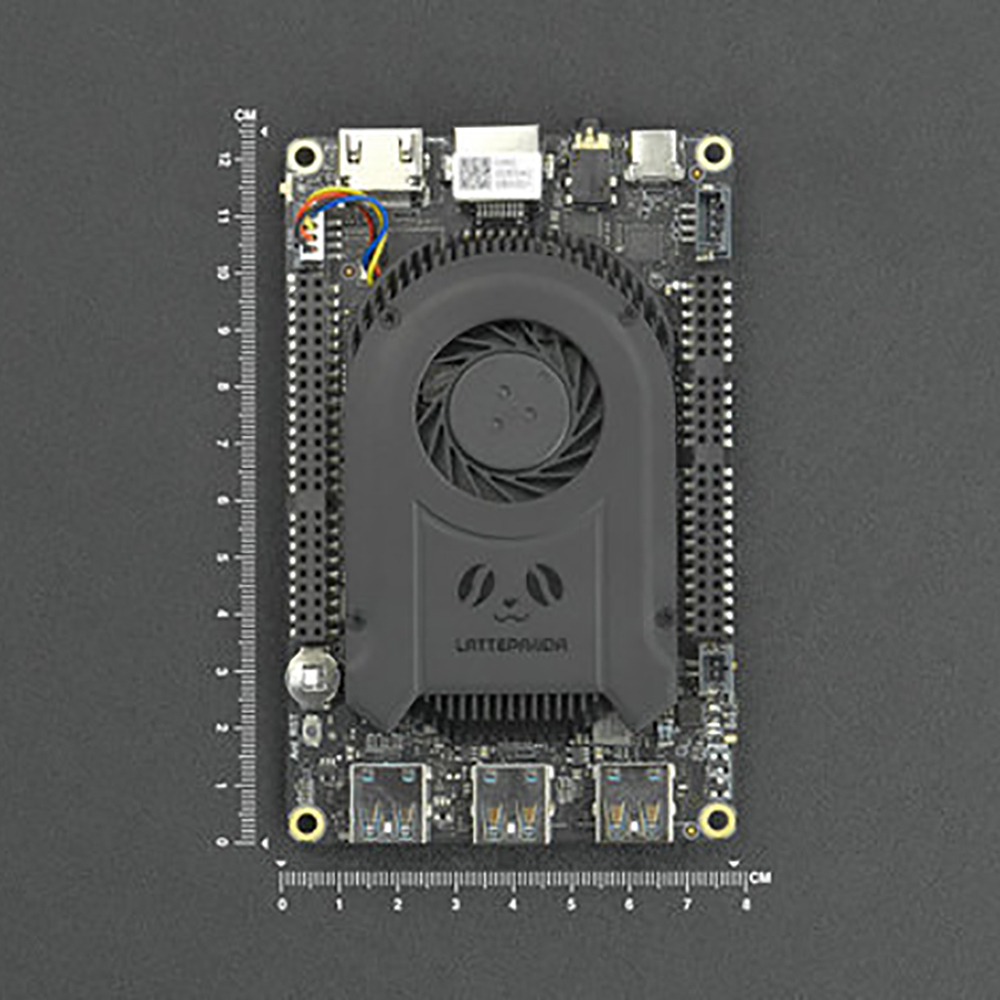

Dimension: 125 x 78 x 16mm

Operating Temperature: 0°C~75°C
