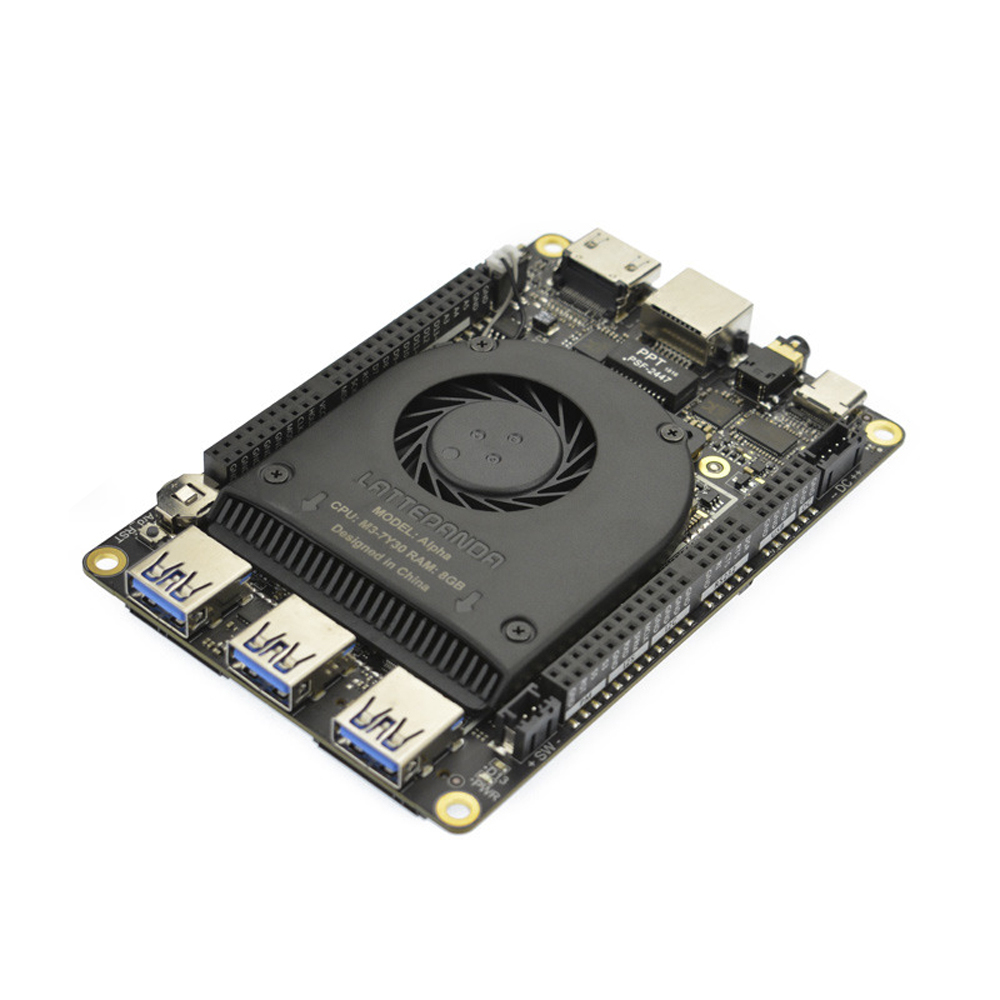

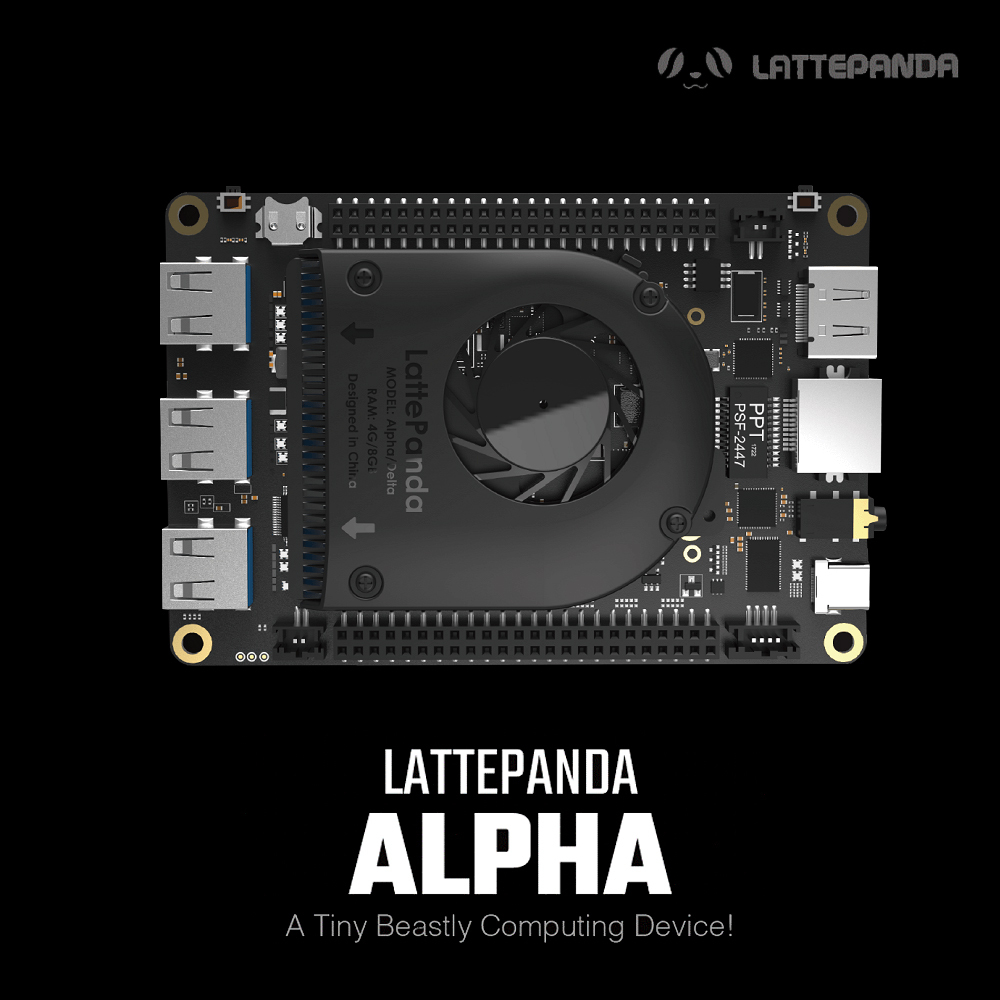

LattePanda Alpha - x86 Single Board Computer

• Quick Start: https://youyeetoo.com/blog/lattepanda-alpha-pd0012pd0013-b0031.html
• Tips
  • Update (2019/04/24):
    - Due to Intel's capacity problems, the supply of Alpha's CPU M3-7y30 will face a continuous shortage. To solve the problem, the LattePanda team updated its CPU to Intel 8th M3-8100y, correspondingly, Alpha 864 models will be upgraded to Alpha 864s. It will improve the whole performance by 30% on the basis of the previous 7th M3-7y30 version.

Introduction

The LattePanda Alpha based on Intel Core™ m3-8100Y, is a Dual-Core 1.1GHz CPU that bursts up to 3.4GHz, Intel® UHD Graphics 615 integrated into the processor deliver enhanced media conversion, fast frame rates, and 4K Ultra HD (UHD) video. All of this computing power dissipates only 8W power, which is the perfect choice in terms of features and price as the main robotics controller, interactive project core, IoT edge device, or AI brain.

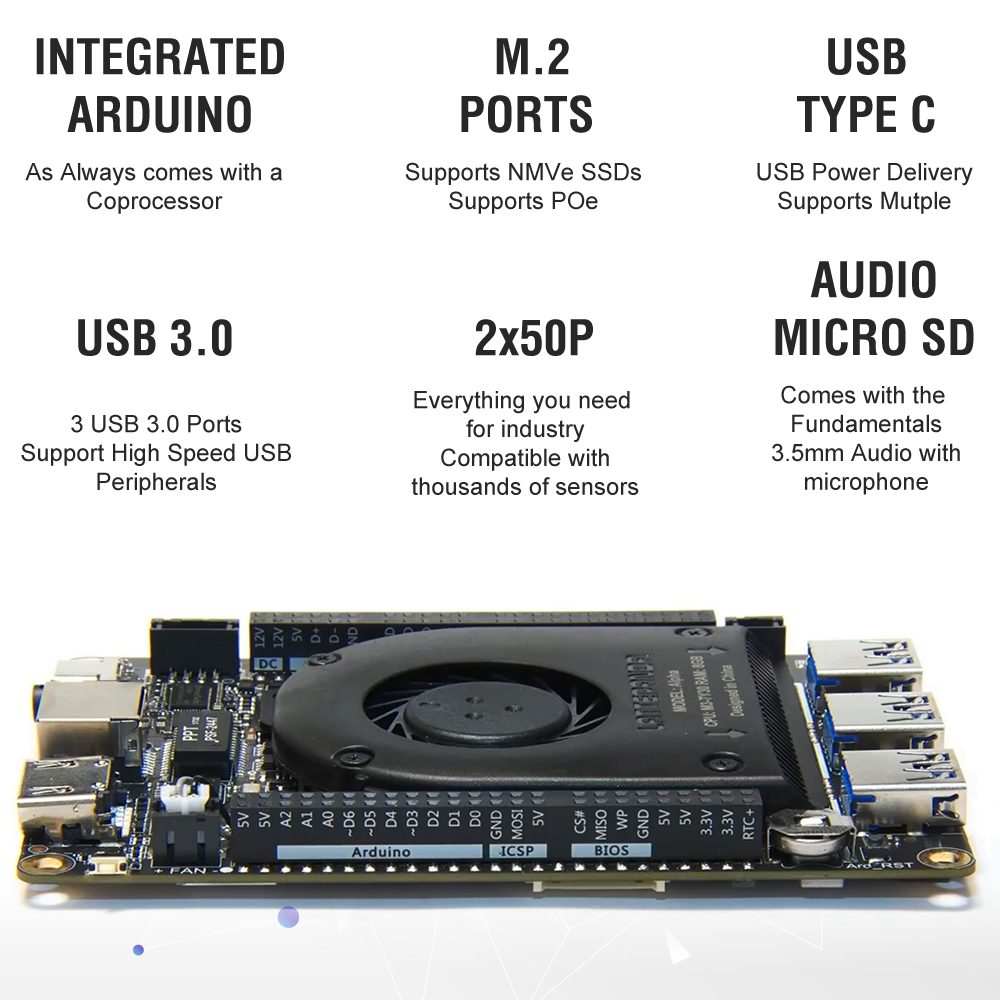

Features

• Intel® Core™ M3-8100Y, Dual-Core, 1.1-3.4GHz
• Intel® UHD Graphics 615
• 8GB Memory
• Dual-Band 2.5GHz/5GHz Wi-Fi & Bluetooth 4.2 & Gigabit Ethernet
• USB3.0 x3，USB Type-C x1
• 2 x M.2 PCIe (Support B&M Key and A&E Key)
• Support Windows 10 & & Linux OS

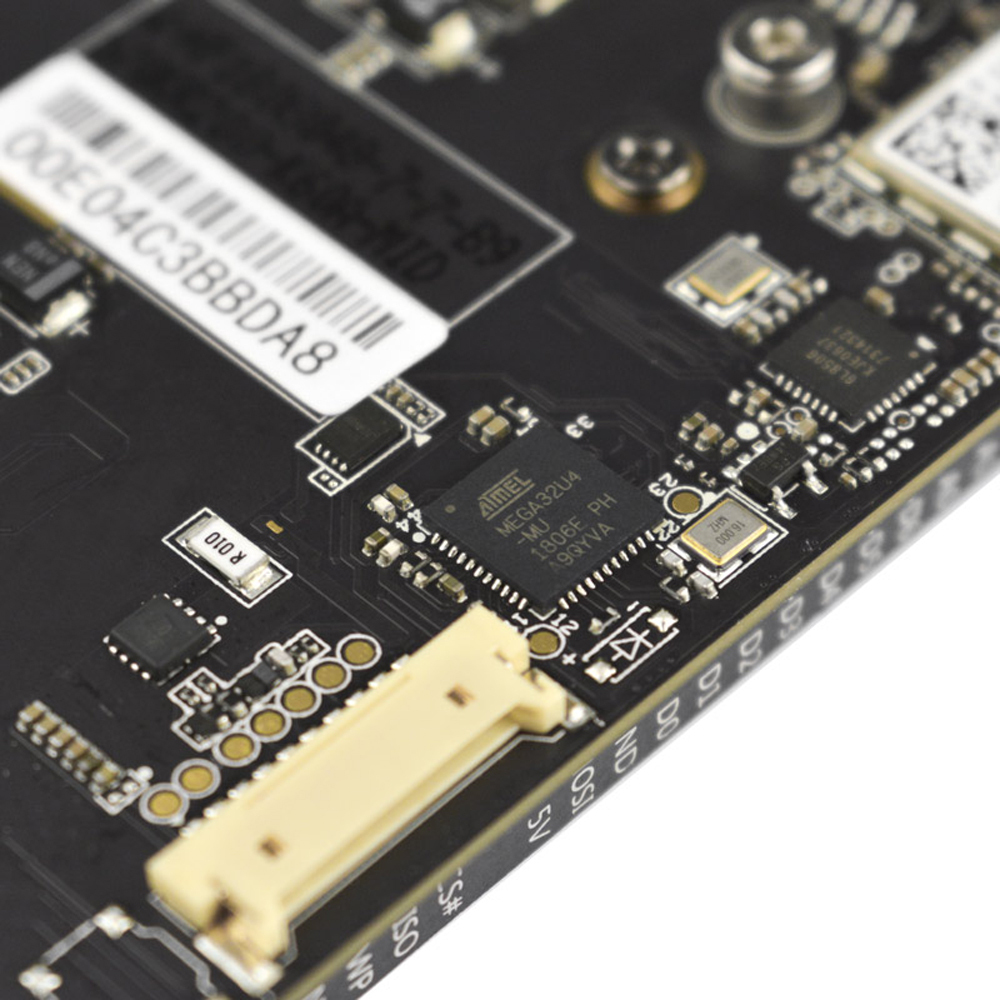

• Integrated Arduino Coprocessor ATMEL 32U4
• Powered by PD adapter / 12V DC / 7.4V battery

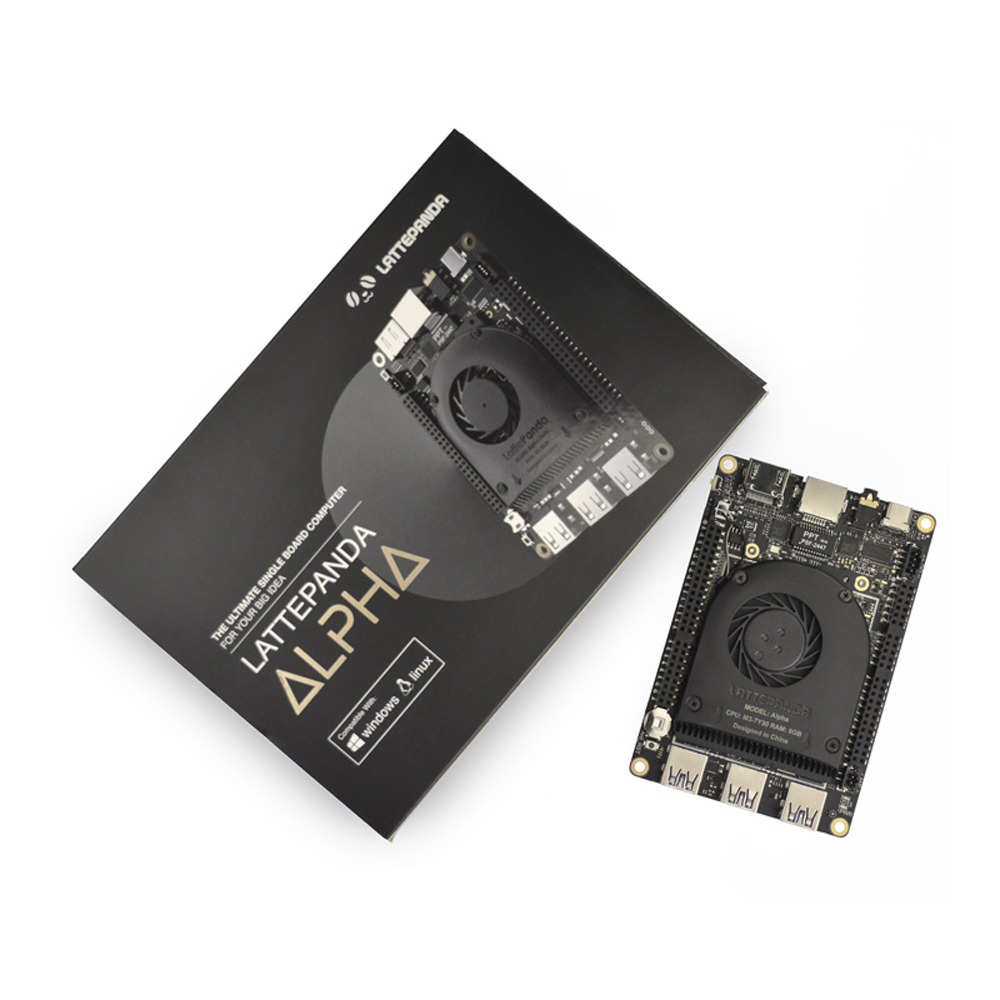

Shipping List

• LattePanda Alpha 864s x1
• Active cooling fan (Assembled) x1
• 45w PD Power adapter (with EU & US standard power cord) x1
• Dual-band antenna x2
• RTC Battery (Assembled）x 1
• User Manual x 1

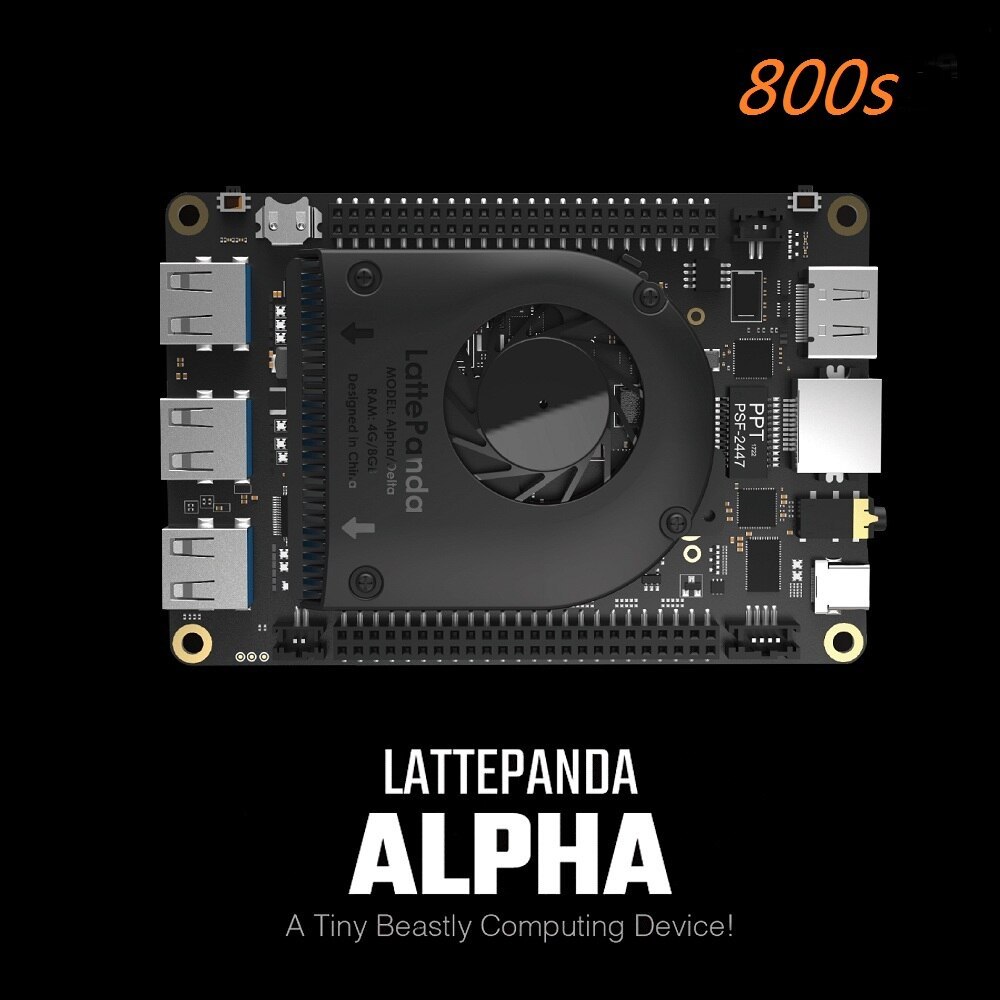

Bundle1: Lattepanda Alpha 800s

Bundle2: Lattepanda Alpha 864s

Bundle3: Lattepanda Alpha 864s (Win10 Pro activated)

Specification

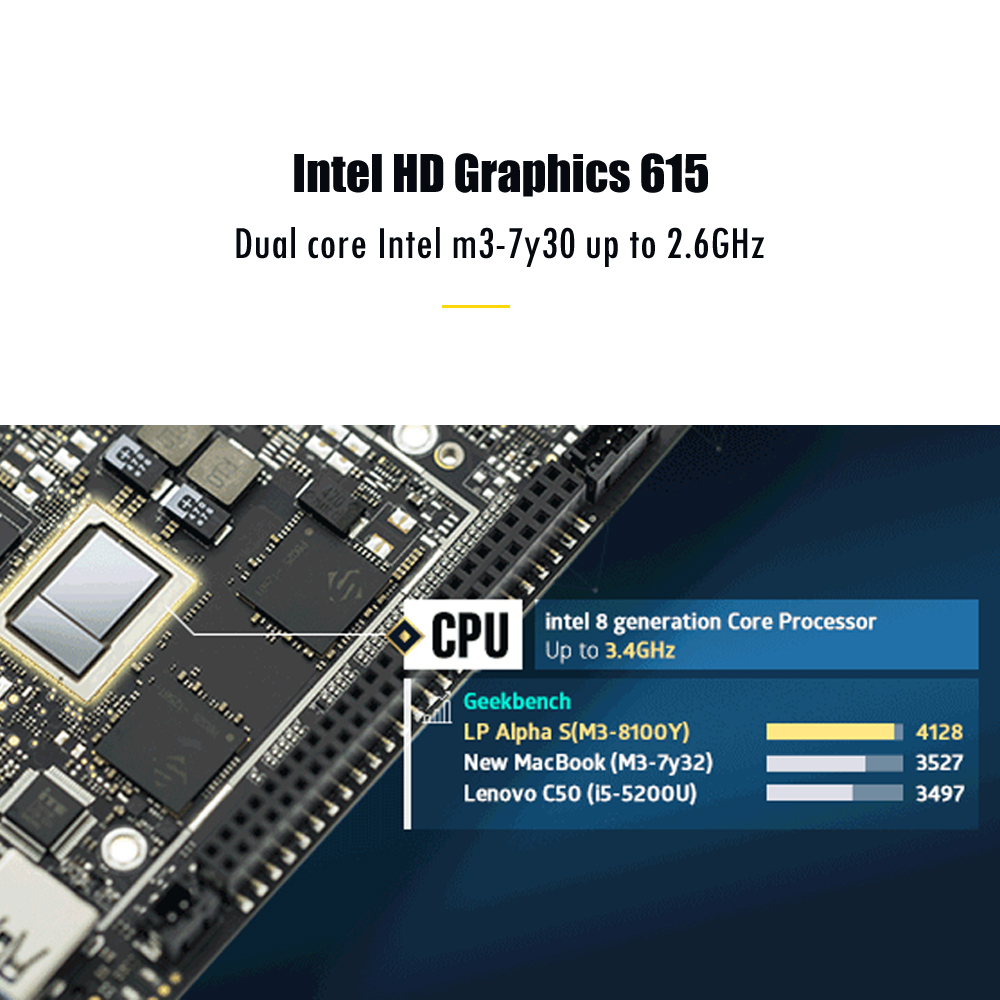

• CPU: Intel Core m3-8100y
• Core: 1.1-3.4GHz Dual-Core, Four-Thread
• Benchmark (PassMark): Up to 4128, double computing power compared with same price range products in the market
• Graphics: Intel HD Graphics 615, 300-900MHz
• RAM: 8GB LPDDR3
• External Memory:

1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD
1x M.2 E Key, PCIe 2x，Supports USB2.0, UART, PCM

• Connectivity:

WIFI 802.11 AC, 2.4G & 5G
Dual-Band Bluetooth 4.2
Gigabit Ethernet

• USB Ports:

3x USB 3.0 Type A
1x USB Type C, supports PD, DP, USB 3.0

• Display:

HDMI Output
Type-C DP Support
Extendable eDP touch displays

• Co-processor: Arduino Leonardo

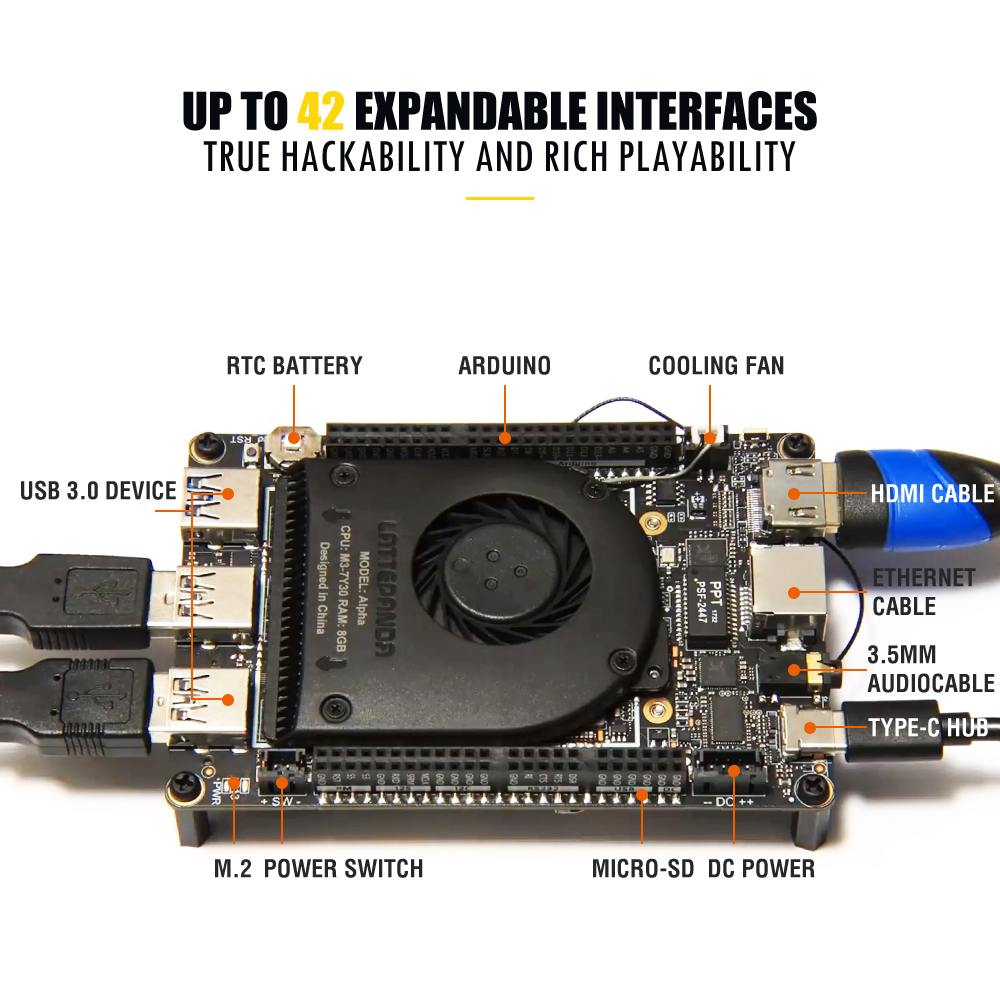

• GPIO & Other Features: 2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC, Power Management, Extendable power button， everything you need
• OS Support:

Windows 10 Pro

Linux Ubuntu

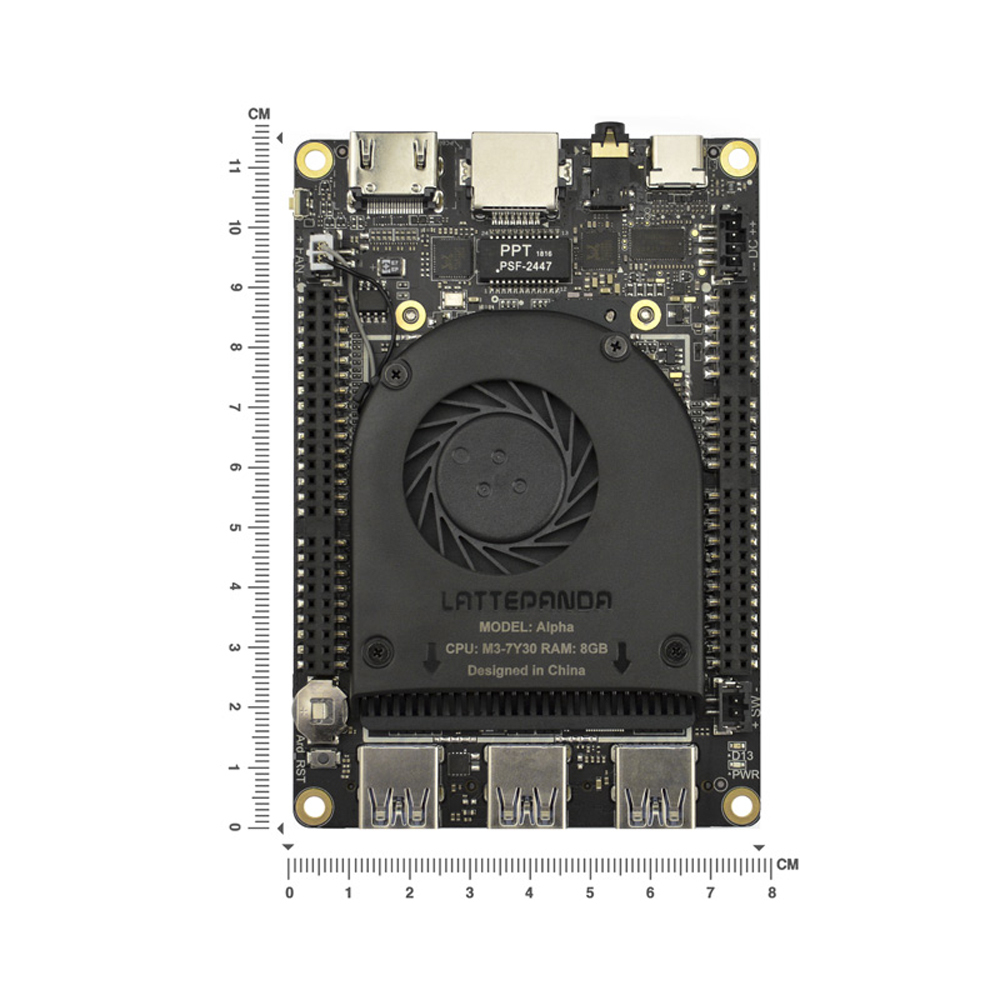

• Dimension: 115mm * 78mm * 14 mm

Detailed Descriptions

Because we saw the different needs of users from our 1st Gen products.

The LattePanda Alpha & Delta Lineup
