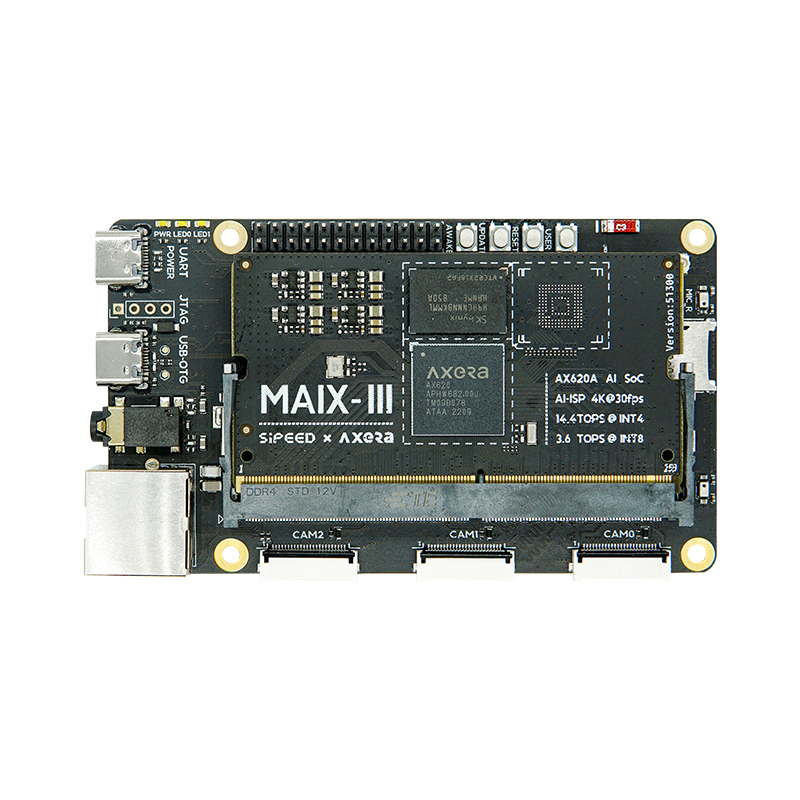

M3AXPI is an AI board developed by SIPEED, which belongs to MAIX-III AXera-Pi series. This board is designed for embedded system and intelligent hardware development, with rich functions and flexible application scenarios. In the following, we will analyze the definition and functions of M3AXPI, its usage, application scenarios and other aspects in detail from various angles to provide you with a comprehensive understanding.
M3AXPI integrates a variety of sensors and peripheral device interfaces to support a variety of AI application development. Its core processor adopts NPU (Neural Processing Unit) or similar dedicated AI processing unit, which can efficiently perform deep learning and machine learning tasks.M3AXPI usually includes input and output devices such as Wi-Fi, Bluetooth, camera, microphone, etc., which can realize image capture, voice processing, data analysis and other functions.
Intelligent Surveillance: utilizing cameras for real-time analysis of video streams and event response.
Edge computing: data processing in close proximity to the data source to reduce the pressure on the cloud.
Intelligent Robotics: Integrate multiple sensors to realize autonomous navigation and interaction functions for robots.
Education and R&D: serve as a teaching and research platform for practicing and exploring AI and IoT technologies.

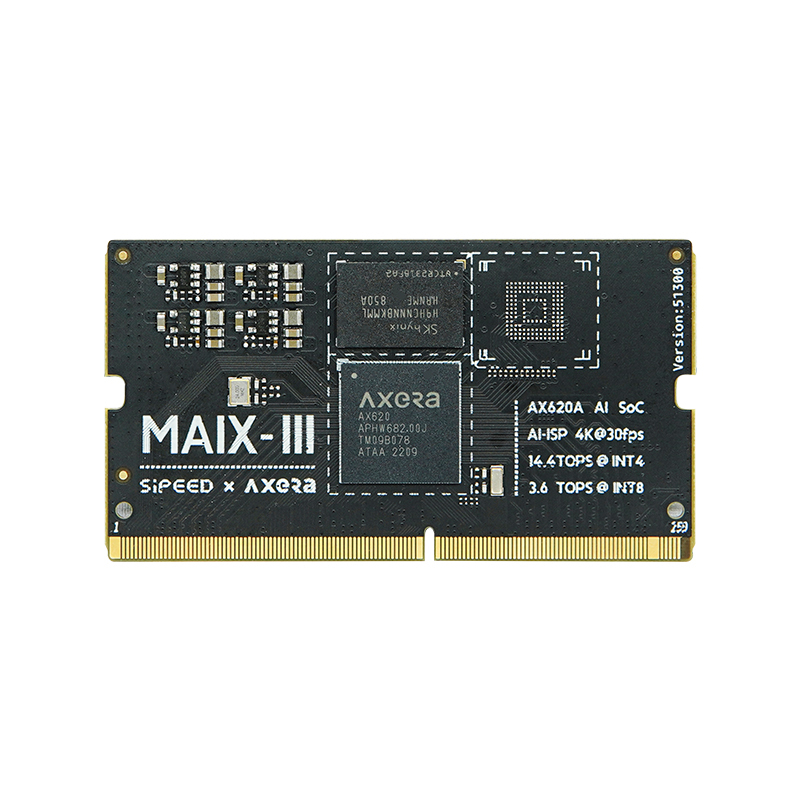

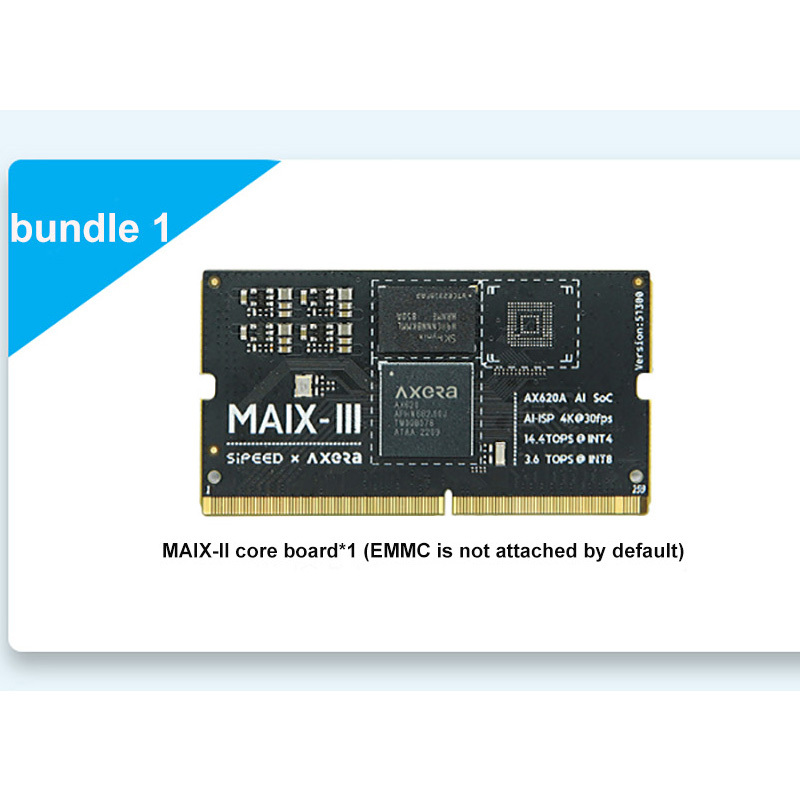

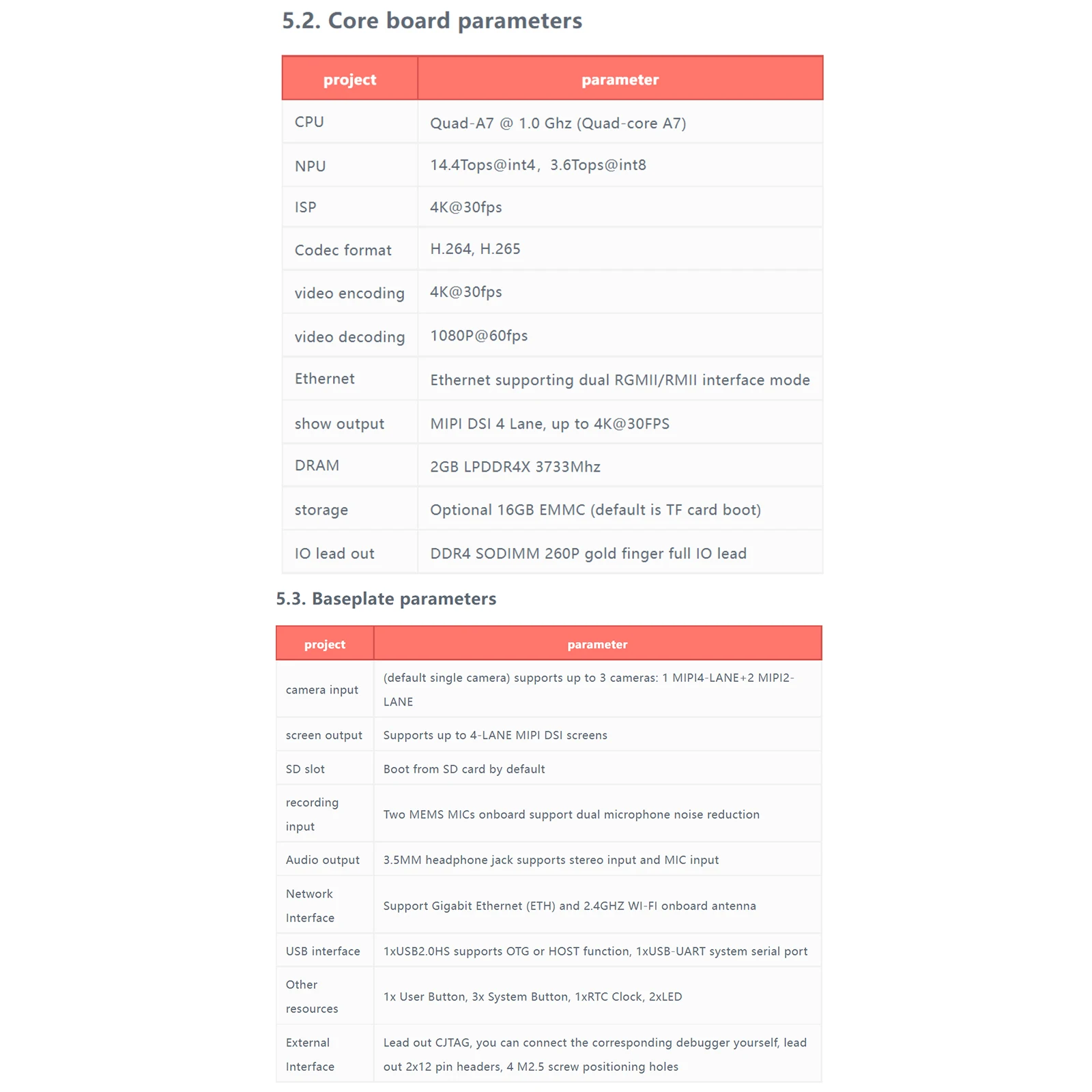

MaixIII Core module | |
---|---|
CPU | 4 * Cortex-A7, with NEON and FPU |
NPU | 14.4Tops@int4,3.6Tops@int8 |
ISP | 4K@30fps |
Codec format | H.264, H.265 |
Video encode | 4K@30fps |
Video decode | 1080P@60fps |
Ethernet | Support RGMII / RMII Ethernet |
Display | MIPI DSI 4 Lane,up to 4K@30FPS |
DRAM | 2GB LPDDR4X 3733Mhz |
Storge | Optional 16GB EMMC (Boot from TF card by default) |

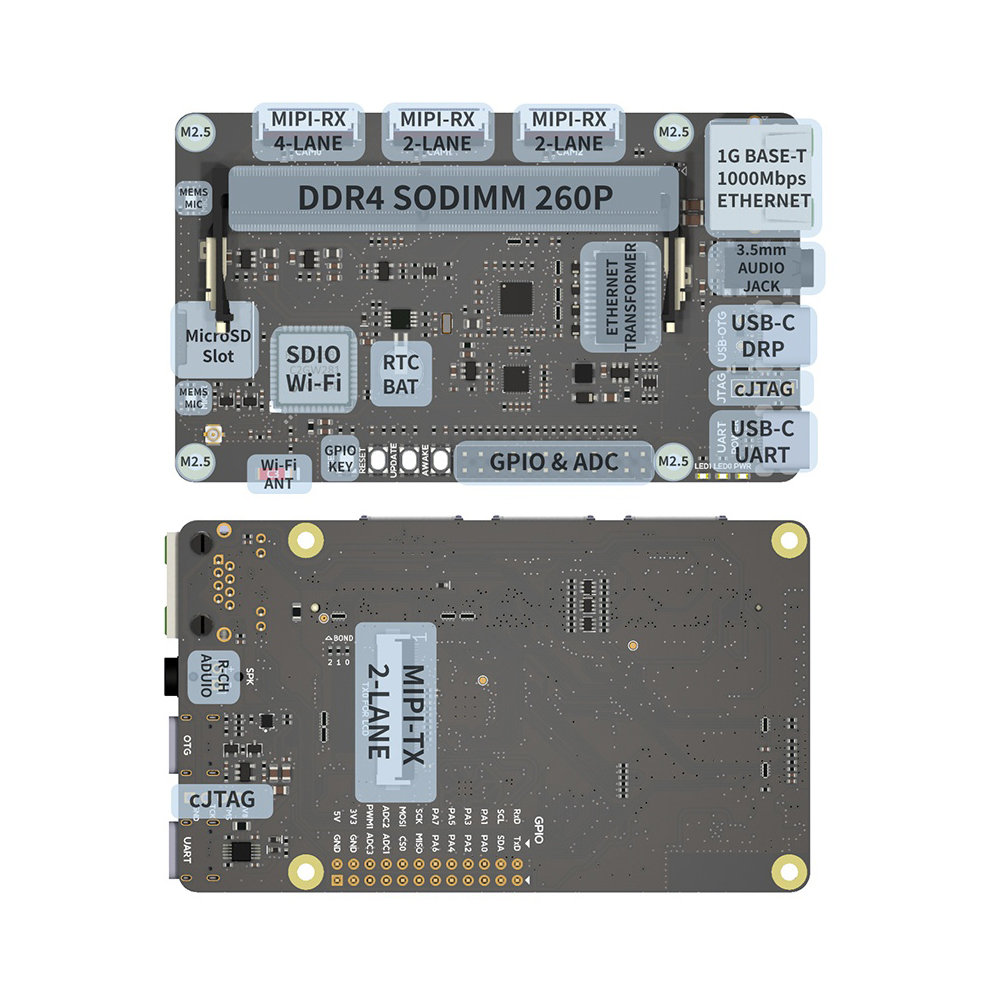

IO pins | DDR4 SODIMM 260P route all IO |
