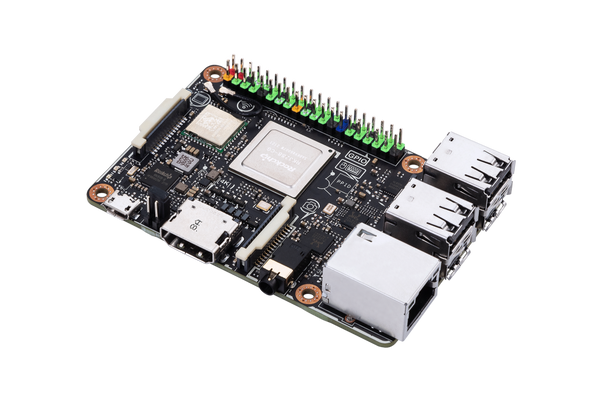

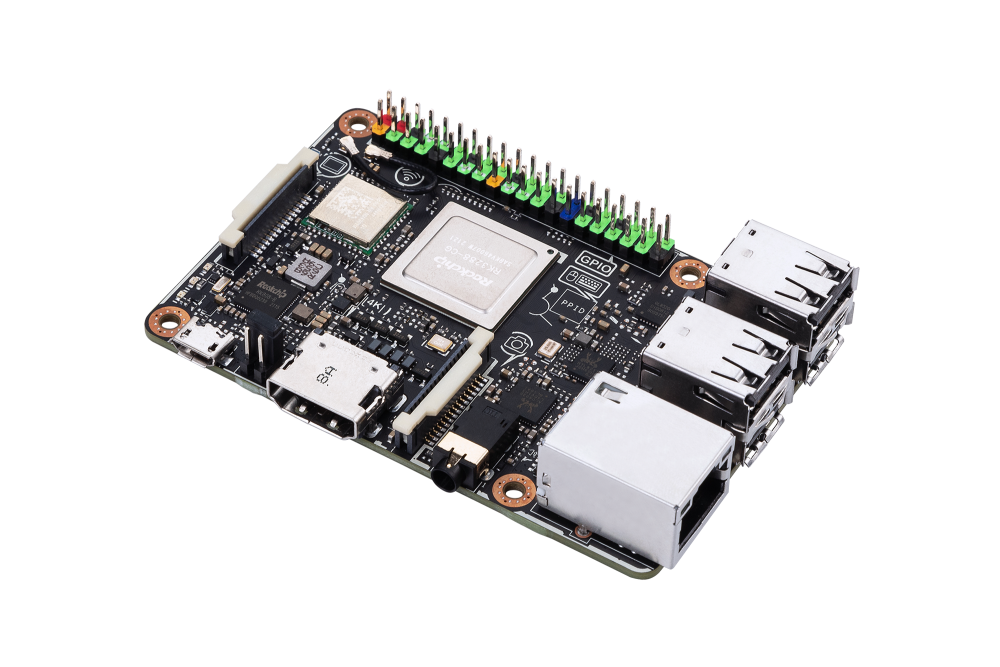

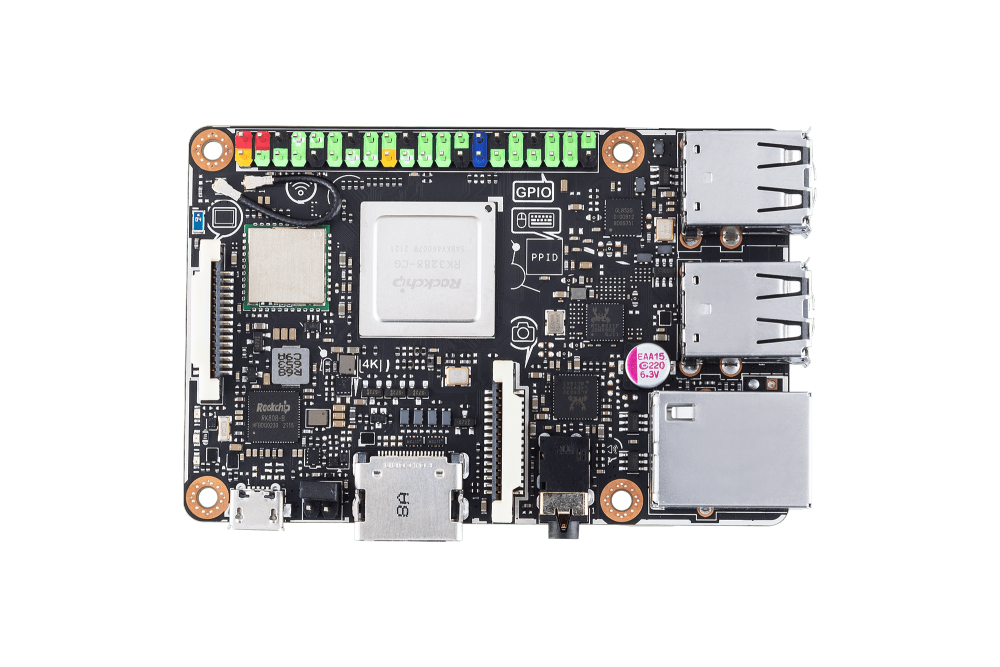

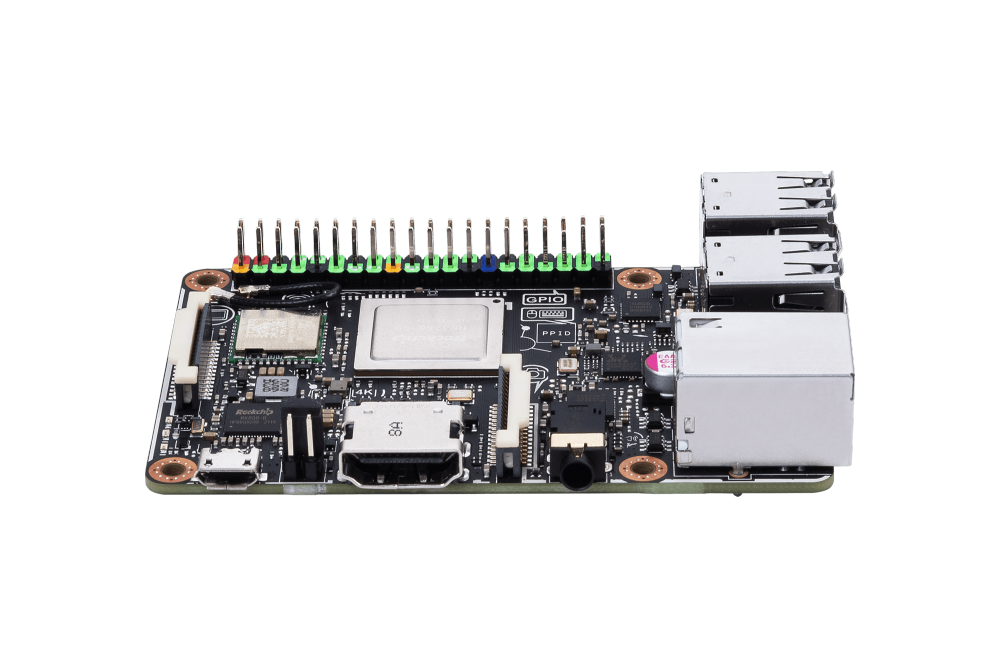

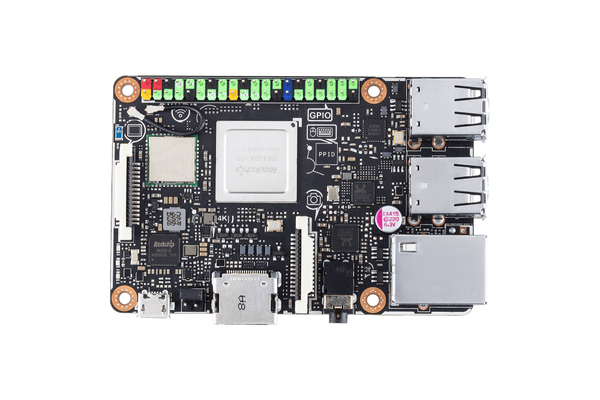

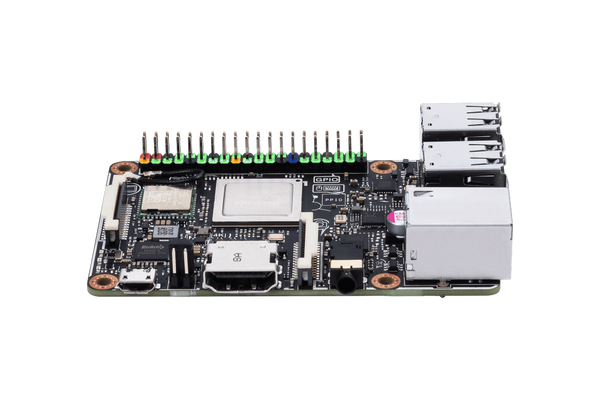

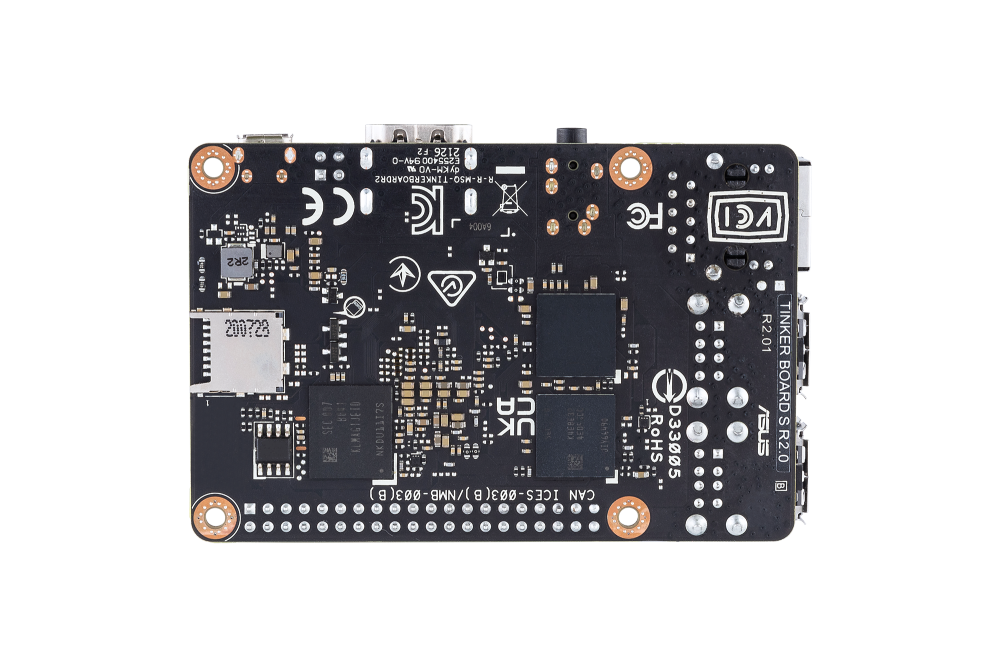

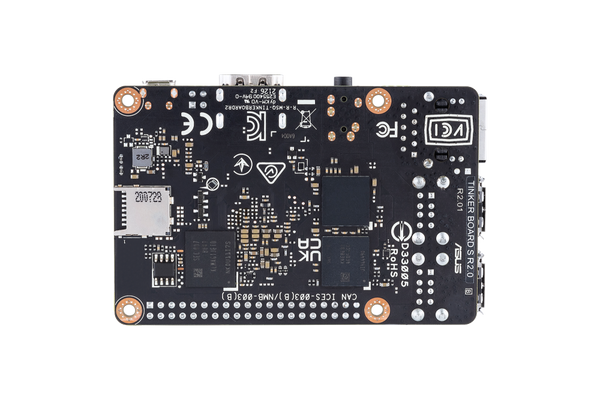

ASUS Tinker Board R2.0 SBC - HD & UHD video playback@30 fps

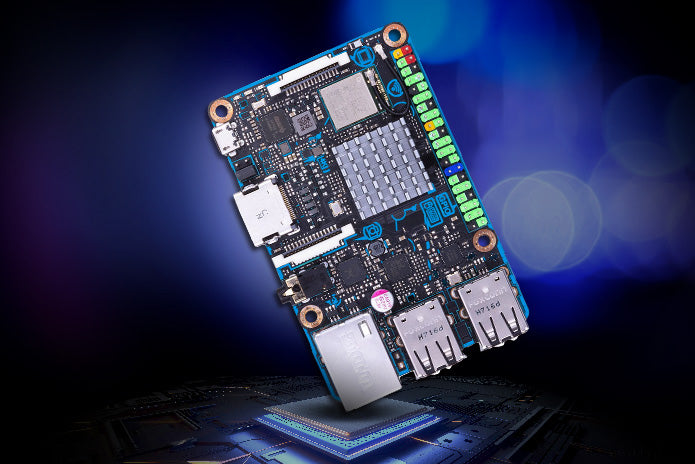

CLASS-LEADING PERFORMANCE

With its powerful and modern quad-core ARM-based processor — the Rockchip RK3288-CG.W — Tinker Board R2.0 series offers significantly improved performance versus other popular SBC boards. Powered by an ARM-based Mali™-T764 GPU, Tinker Board R2.0's GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.

* HD & UHD video playback at 30 fps on Tinker Board R2.0 is currently only available via the included media player. Third-party video players and applications may not offer hardware acceleration, which will result in limited or unstable playback performance.

HD AUDIO QUALITY

Tinker Board R2.0 series is equipped with an HD codec that supports up to 24-bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module.

The audio jack also offers hassle-free plug-in detection so it automatically switches the audio output to an audio jack when the speaker or headset is connected.

24bit/192kHz

Audio support

Audio Jack

Integrated support

STANDARD INTERFACE FOR IOT CONNECTIVITY

Tinker Board R2.0 series features standard maker connectivity options, including a 40-pin GPIO interface that allow for interfacing with a range inputs. Tinker Board R2.0 series is equipped with one DSI MIPI connection for displays and touchscreens. The secondary CSI MIPI connection is for connection to compatible cameras allowing for computer vision, and much more.

Tinker Board R2.0 series also features Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port ensures consistent Ethernet performance. The integrated Wi-Fi and Bluetooth controller on the Tinker Board S is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX antenna header allows for easy antenna replacement or upgrades.

Tinker Board R2.0 series also features a full-size HDMI output. Additionally, it includes four USB 2.0 ports for extensive peripheral and accessory connectivity.

Tinker Board S R2.0 specifications:

• SoC – Rockchip RK3288-CG.W quad-core ARM Cortex A17 processor up to 1.8 GHz with Mali-T764 GPU @ up to 600 MHz supporting OpenGL ES 1.1/2.0 /3.0, and OpenCL 1.1
• System Memory – 2GB dual-channel DDR3
• Storage – 16GB eMMC flash + microSD slot
• Video output & Display I/F
  • 1x HDMI 2.0 up to 3840×2160 @ 30 Hz with HDMI CEC
  • 1x 15-pin MIPI DSI supporting HD resolution
• Audio – 1x 3.5mm audio jack with plug-in detection and auto-switch; Realtek ALC4040 HD codec with 192KHz/24-bit audio
• Camera I/F – 1x 15-pin MIPI CSI connector
• Connectivity – Gigabit Ethernet, 802.11 b/g/n WiFi, Bluetooth 4.2 + EDR
• USB – 4x USB 2.0 host ports, 1x micro USB port (for power)
• Expansion Headers
  • 40-pin Raspberry Pi compatible header with up to 28x GPIOs, 2x SPI, 2x I2C, 4x UART, 2x PWM, 1x PCM/I2S, 5V, 3.3V, and GND
  • 2-pin contact point with 1x PWM signal, 1x S/PDIF signal
  • 2-pin power-on-header
• Misc – Button, unpopulated fan header
• Power Supply – 5V/2-3A via micro USB port with support for low voltage detection
• Dimensions – 85.6 x 54 cm
• Weight – 55 grams
